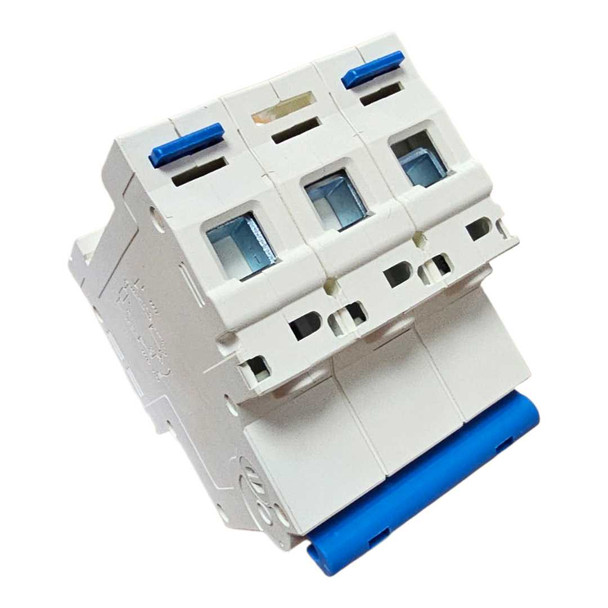

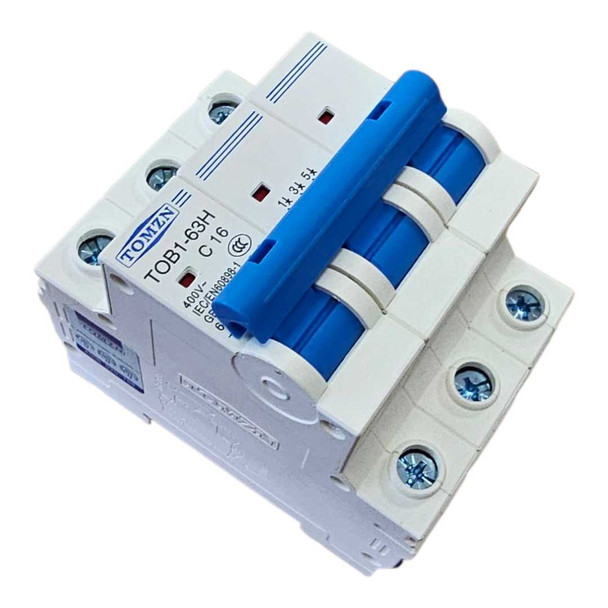

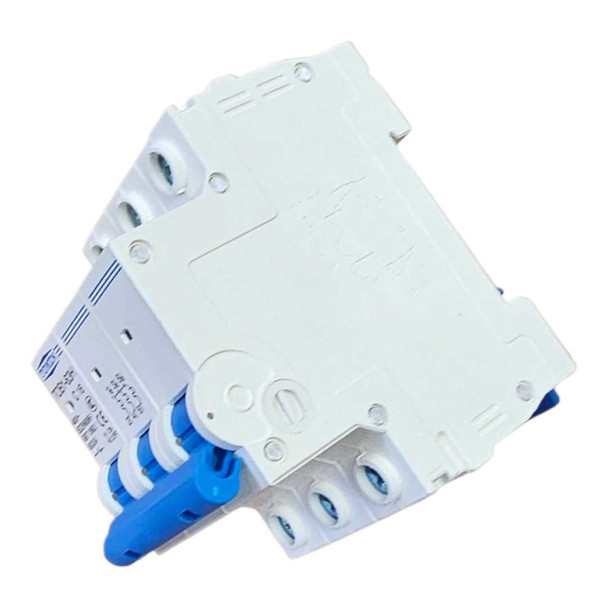

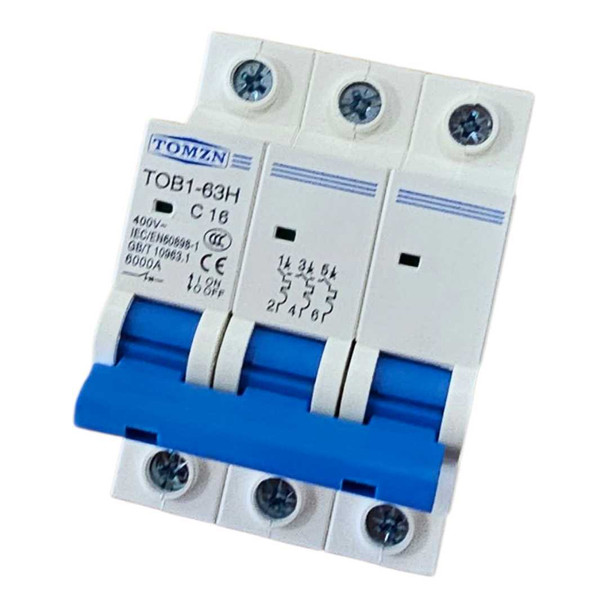

Tomzn TOB1-63H 3 Pole 16A MCB – C Curve | 400V Miniature Circuit Breaker | 6kA
UK Stock - Support
Professional 3-Phase Circuit Protection with the Tomzn TOB1-63H 3-Pole C16 MCB
16A - 3 Way Breaker
This Tomzn TOB1-63H 3-Pole C16 MCB offers reliable circuit protection for three-phase AC systems. Rated at 16 amps, with a C-curve tripping characteristic, it’s ideal for installations with moderate inrush currents – such as motors, heating elements, or commercial lighting.
Tested to international safety standards IEC/EN 60898-1 and GB/T 10963.1, this breaker safely interrupts fault currents up to 6,000A (6kA) and is fully compatible with standard 35mm DIN rail enclosures.
âś… Key Features:
- 3 Pole (3P) Miniature Circuit Breaker
- Rated Current: 16A
- Voltage: 400V AC, 50/60Hz
- Tripping Curve: Type C (5–10× rated current)
- Breaking Capacity: 6000A (6kA)
- Standards: IEC60898-1 / GB-T 10963.1
- Mounting: 35mm DIN rail
- Use Case: 3-phase distribution boards, motors, commercial lighting
? Technical Specifications:
Poles | 3 |
Rated Current | 16A |
Voltage Rating | 400V AC |
Frequency | 50/60Hz |
Tripping Curve | Type C |
Breaking Capacity | 6kA |
Mounting | 35mm DIN rail |
Standards | IEC/EN 60898-1, GB/T 10963.1 |
Operating Temp | –5°C to +40°C |
Material | Flame-retardant thermoplastic |
?️ Common Applications:
- Industrial machine panels
- Three-phase heating systems
- Motor protection
- Lighting circuits
- Distribution boards
âť“ Frequently Asked Questions
- What does "C16" mean?
- "C" is the tripping curve, suited for medium inrush loads like motors. "16" means 16 amp current rating.
- Is this suitable for a three-phase system?
- Yes. It protects all three phases with a single breaker.
- Can this MCB be used in residential installations?
- Usually found in commercial and industrial setups, but suitable for homes with 3-phase supply.
- What’s the difference between B, C, and D curves?
- B = 3–5× rated current, C = 5–10×, D = 10–20×. C is ideal for inductive loads.
- Will this fit my enclosure?
- Yes, it's designed for 35mm DIN rails, standard in most consumer and distribution boards. 3 Modules wide.
