HDIUK

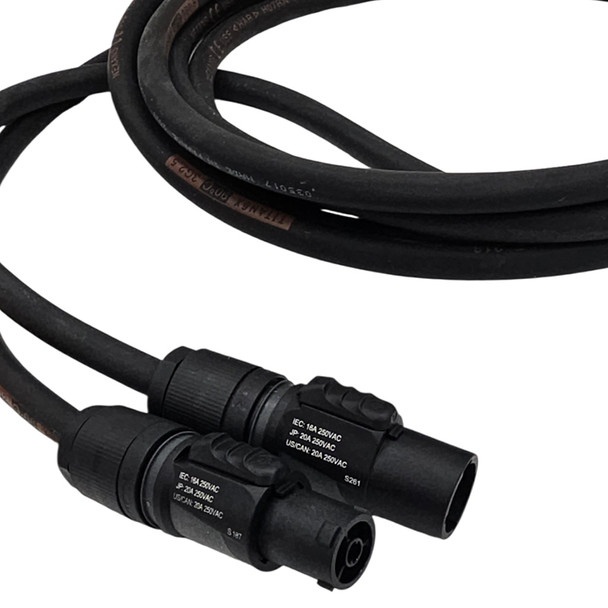

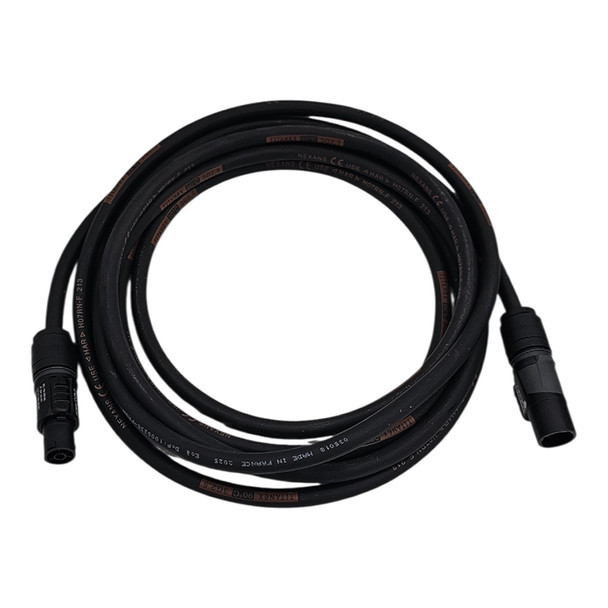

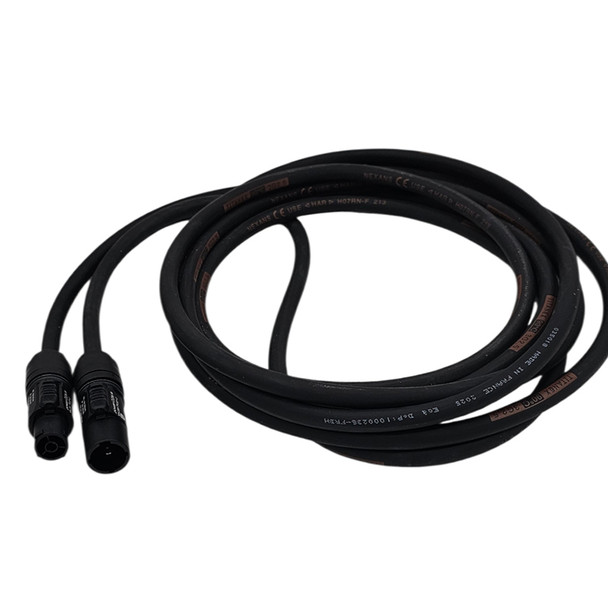

PowerCon True1 16A 230V Extension Lead TitanEx 2.5mm2
- SKU:
- True1-3g2.5-ex
Based on UK time (GMT/BST).
Orders ship Mon–Fri before 4pm.
Public holidays and weekends excluded.
Royal Mail may deliver on Saturdays depending on local service and access.
Some items may require additional processing time.
Description
This powerCON TRUE1 extension lead is a professional plug-to-socket cable built for reliable power distribution in stage, event, broadcast and temporary power environments. Made with genuine TRUE1 connectors and Titanex H07RN-F 3G 2.5 mm² rubber cable, it delivers a secure locking connection designed for repeated real-world deployment.
The TRUE1 plug-to-socket format lets you extend existing TRUE1 power runs cleanly, keeping your setup robust and consistent without compromising conductor size or connector integrity.
What This TRUE1 Extension Lead Is Used For
Use this cable to extend a powerCON TRUE1 power output to downstream TRUE1-equipped devices, distro points or additional TRUE1 extension runs. It’s ideal where you need a locking connector system that resists accidental disconnection during live operation.
Connector & Cable Construction
- Input: powerCON TRUE1 plug (Power In)
- Output: powerCON TRUE1 socket (Power Out)
- Cable: Titanex H07RN-F 3G 2.5 mm² rubber cable
- Conductor size: 2.5 mm² throughout
- Rated current: 16A @ 230V AC
- Colour: Black
Titanex H07RN-F is widely used for professional power applications thanks to its flexibility, abrasion resistance and suitability for repeated coiling, handling and deployment.
powerCON TRUE1 System Advantages
The powerCON TRUE1 system combines a locking connector with breaking capacity, allowing safe connection and disconnection under load. This makes TRUE1 a popular choice for professional environments where reliability and secure locking matter.
Ingress Protection (IP Rating)
The TRUE1 connector system provides IP65 and IP67 protection when mated, meaning the connection is protected against dust ingress and water jets, and can withstand temporary immersion when correctly connected. This is one reason TRUE1 is widely used for outdoor stages and demanding temporary installations.
If you’re specifically building weather-tough setups, you may also want to browse our IP67-rated products for compatible site and event power hardware.
Typical Applications
- Extending power runs between TRUE1-equipped devices
- Stage, touring and festival power distribution
- Broadcast, AV and production environments
- Temporary power layouts requiring secure locking connectors
Important Technical Notes
This is a passive extension cable. It does not provide RCD protection, current limiting or load management. All connected equipment must operate within the limits of the upstream supply and protection devices.
Where additional protection is required by site rules or risk assessment, use upstream RCD or RCBO protection.
Why Choose MotorCables TRUE1 Leads
- Professionally assembled and electrically checked
- Correct 2.5 mm² conductor sizing — no compromises
- Genuine locking TRUE1 connector system
- Built for real-world event and site power use
Frequently Asked Questions
Is this a powerCON TRUE1 plug-to-socket extension lead for stage and event power systems?
Yes. It’s a TRUE1 plug-to-socket extension cable designed to extend existing TRUE1 power connections safely within the rated limits of the upstream supply.
What IP rating does a powerCON TRUE1 extension lead provide when the connectors are mated?
The TRUE1 connector interface provides IP65 and IP67 protection when mated, meaning the connection is sealed against dust and water ingress when correctly connected.
Does this TRUE1 extension lead provide RCD protection or any form of current limiting?
No. This is a passive extension lead and relies on upstream protection from the power source or distribution system.
Prime HDi and MotorCables are trading names of HDIUK Limited. Registered in the United Kingdom.
