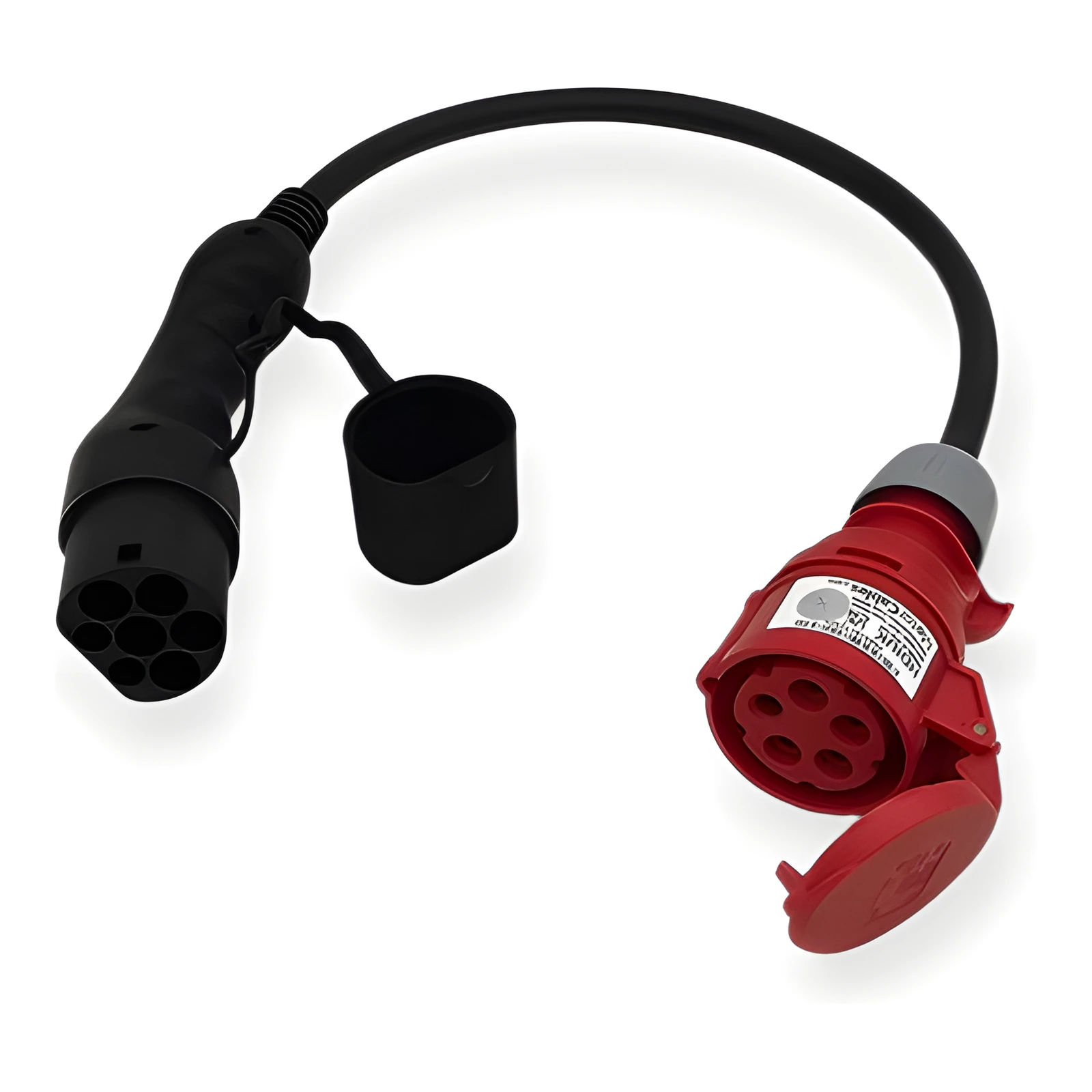

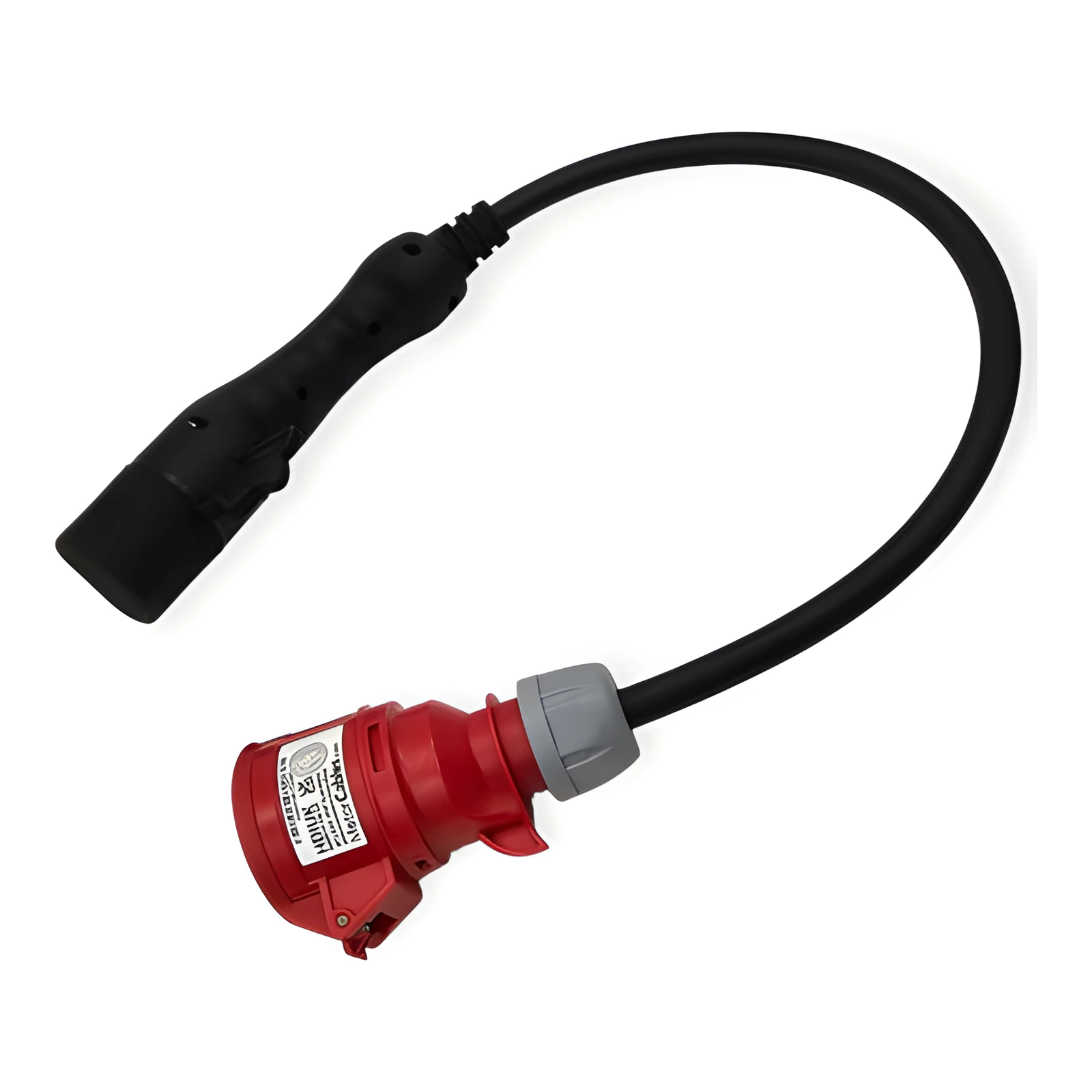

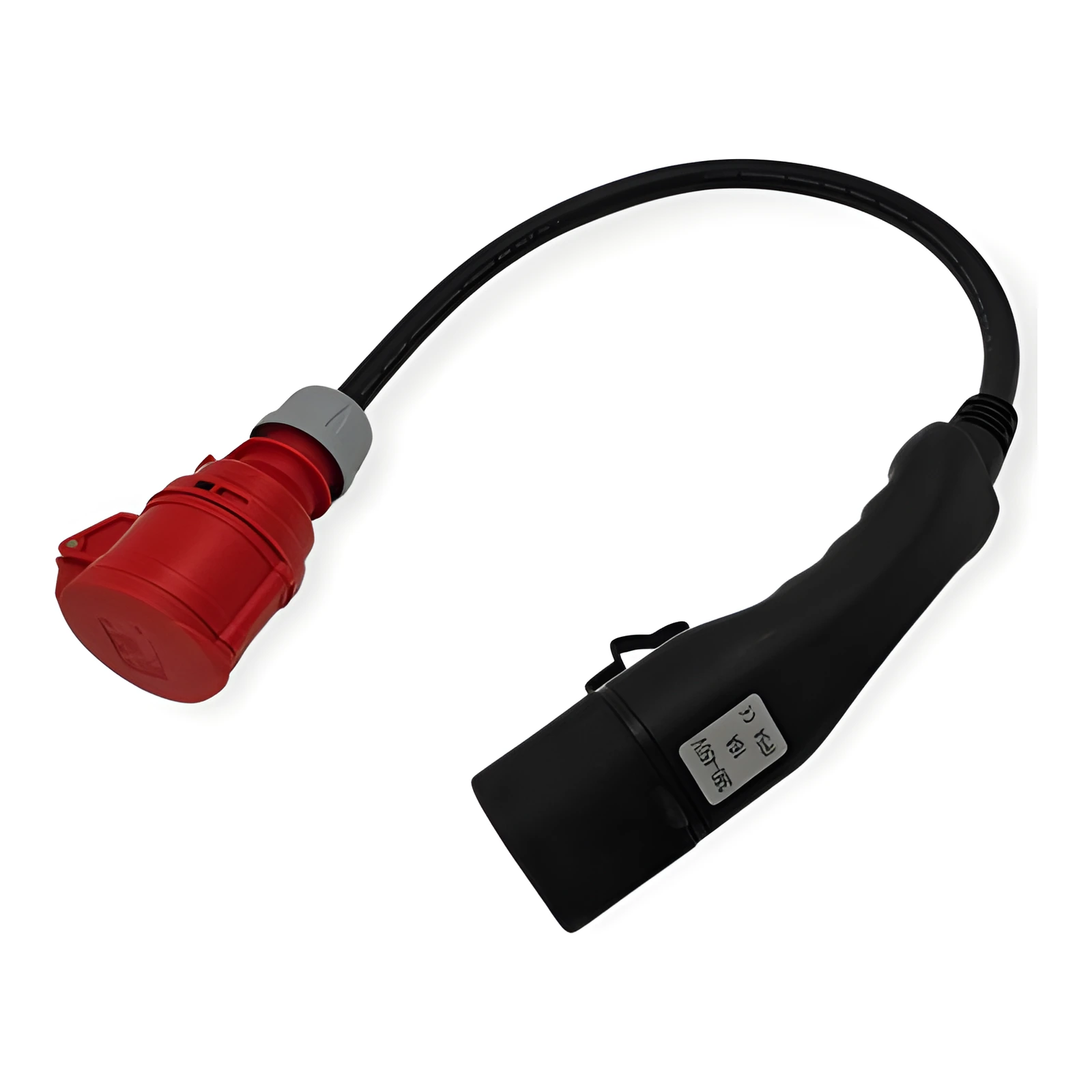

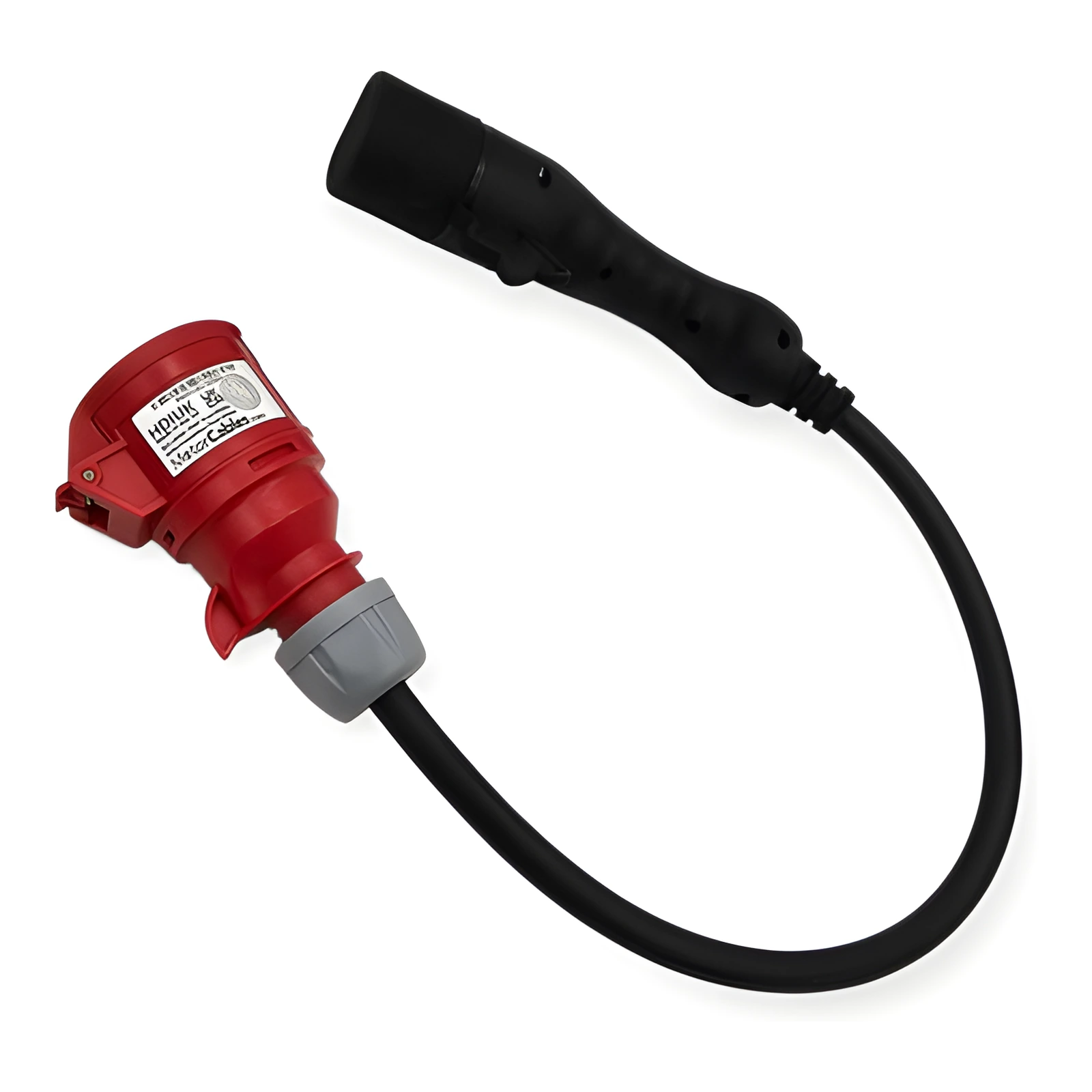

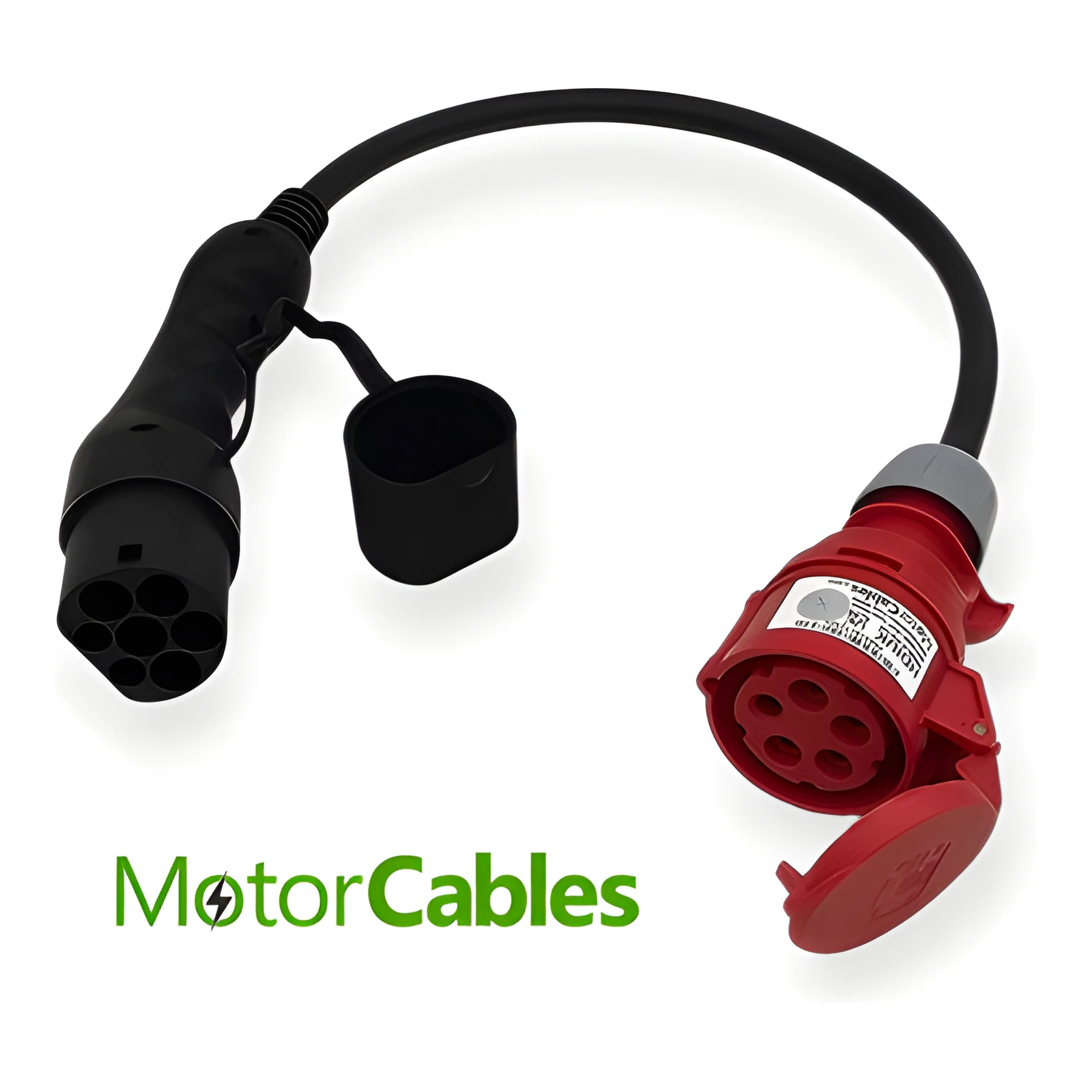

EV Type-2 11KW to 16A 415V 3-Phase CEE 3-Phase AC Converter

What This Is For

This converter allows users to connect to 3-phase charging points, making it ideal for:

• Recharging electric vehicles
• Powering tools and equipment on construction sites
• Providing temporary power at events and festivals
• Running appliances in motorhomes and caravans

Key Features

• 11 kW Capacity (16 A per phase): Delivers 400 V AC 3-phase power for tools, chargers, and equipment.
• Universal Type 2 Compatibility: Connects directly to home or public EV charge points across the UK and EU.
• Heavy-Duty UK-Made Cable: Built with 5G2.5 mm² HO7RN-F rubber flex for maximum durability and flexibility.
• Smart PP Communication: Integrated Proximity Pilot resistor announces a 16 A limit for safe activation.
• Weather-Resistant Design: IP67 industrial-grade connectors for outdoor and event use.
• Compact Length: Approximately 1 m for easy stowage and minimum voltage drop.

Technical Specs

• Input: Type 2 plug (L1 L2 L3 N E + PP/CP)
• Output: CEE 5-Pin Red 16 A Socket (400 V AC 3-Phase)
• Cable Type: 5G2.5 mm² HO7RN-F rubber flex
• Max Power: 11 kW (16 A per phase)
• Ingress Protection: IP67 outdoor rated
• Length: Approximately 1 m
• Compliance: BS EN 60309 / CE / UKCA Certified

Compatibility & Safety Notes

This adapter is designed for use with Type 2 charging points and is compliant with UK regulations. Always ensure proper handling and connection to prevent electrical hazards. It is recommended to follow all safety guidelines during use.

Enhance your charging capabilities with the EV Type-2 11KW to 16A 415V 3-Phase CEE 3-Phase AC Converter. This versatile adapter is perfect for connecting to various power sources, including our EV Type 2 to CEE 230 Volt 16A Socket Power Supply Converter for additional options. For those needing higher power, consider the Type-2 7.4kw Plug to 32A CEE Connector EV Charge-Point 230V Power Converter or the EV Type 2 22KW to 32A 415V 3-Phase CEE 3-Phase AC Converter for more demanding applications.

Understand the connection signals: EV charging CP and PP explained — Control Pilot, Proximity Pilot and current limits.

Frequently Asked Questions

Can the EV Type-2 11KW to 16A 415V 3-Phase CEE Converter power a motorhome safely?

This adapter provides a three-phase CEE output for compatible equipment. A motorhome’s usual 230 V single-phase hookup cannot take 11 kW directly from one 16 A phase; use a correctly rated and protected arrangement.

What must I check before using this adapter for auxiliary power?

Use requires a compatible charge point, the operator’s permission and compliance with applicable electrical requirements. A CE or UKCA mark alone does not establish permission or compliance for every installation.

How does this EV Type-2 11KW to 16A 415V 3-Phase CEE Converter differ from 7 kW or 22 kW models?

7 kW = 32 A single-phase, 11 kW = 16 A 3-phase, 22 kW = 32 A 3-phase for industrial use.

Are there extension leads for the EV Type-2 11KW to 16A 415V 3-Phase CEE Converter?

Yes – see our Titanex Three-Phase Extension Leads for safe long-distance connections.

When should I choose the 16 A three-phase model?

Choose this model only when your equipment requires a 16 A three-phase CEE supply. Check the exact connector, neutral requirement, protection and charge-point compatibility before ordering.
