Description
Type 2 charge point to 32 A three-phase CEE power

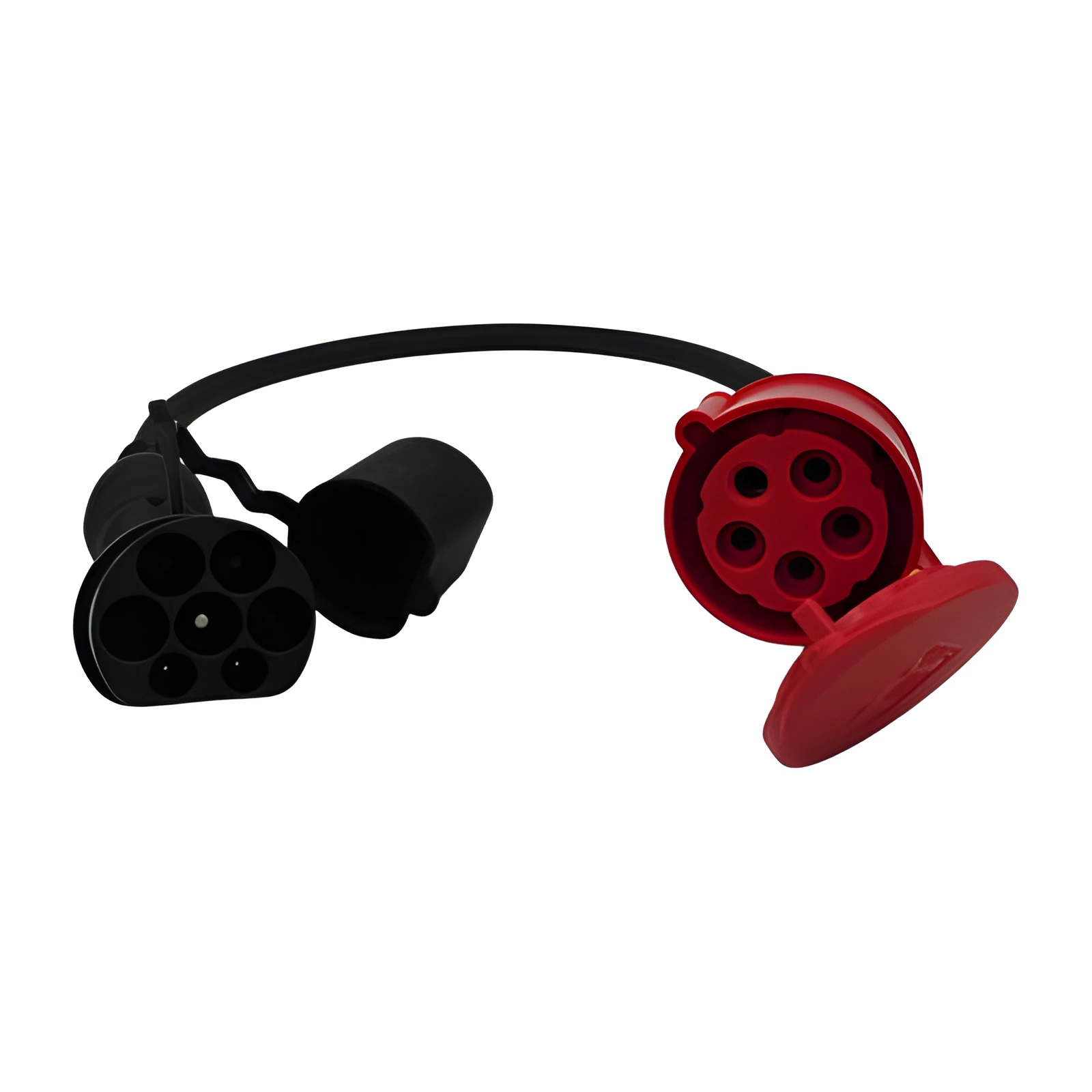

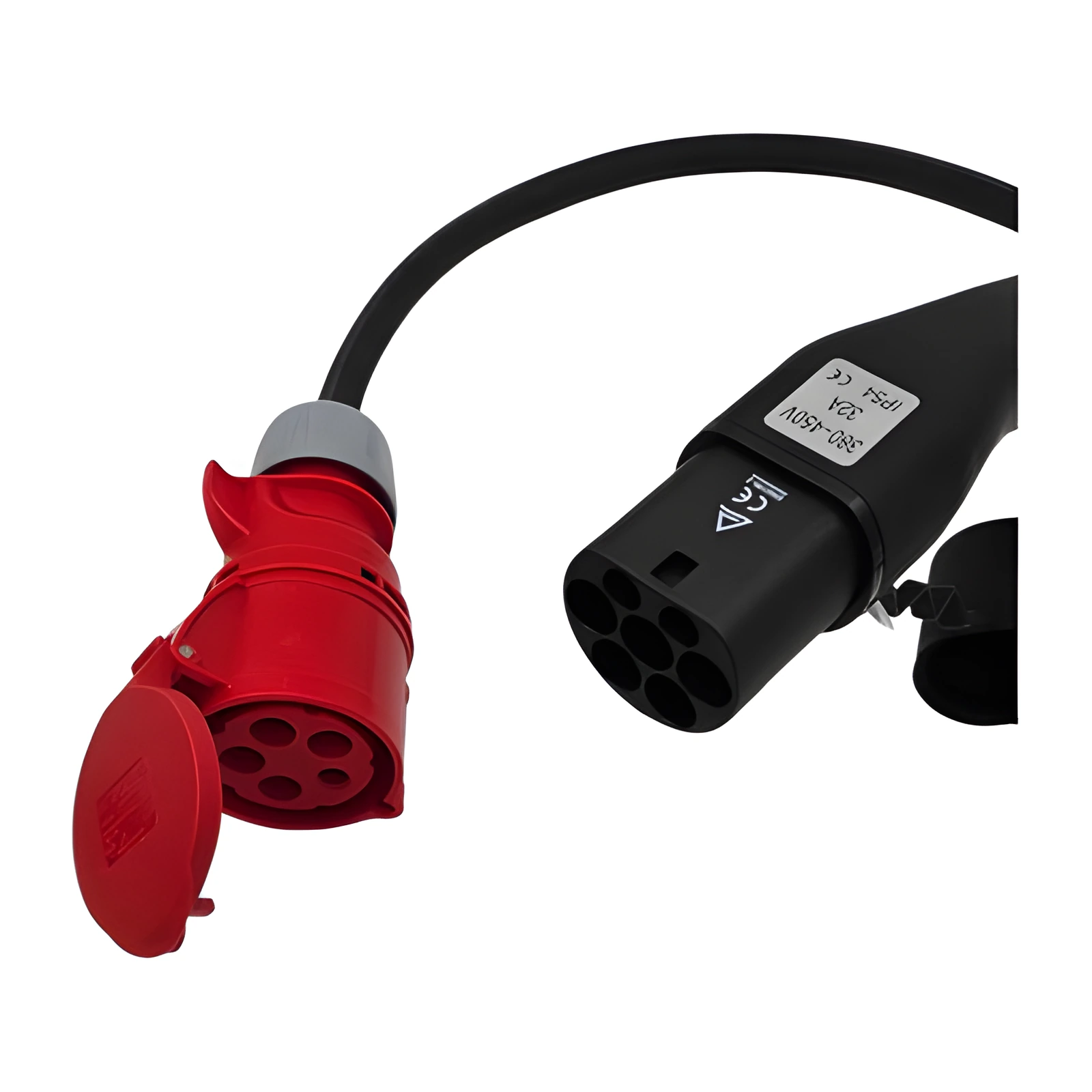

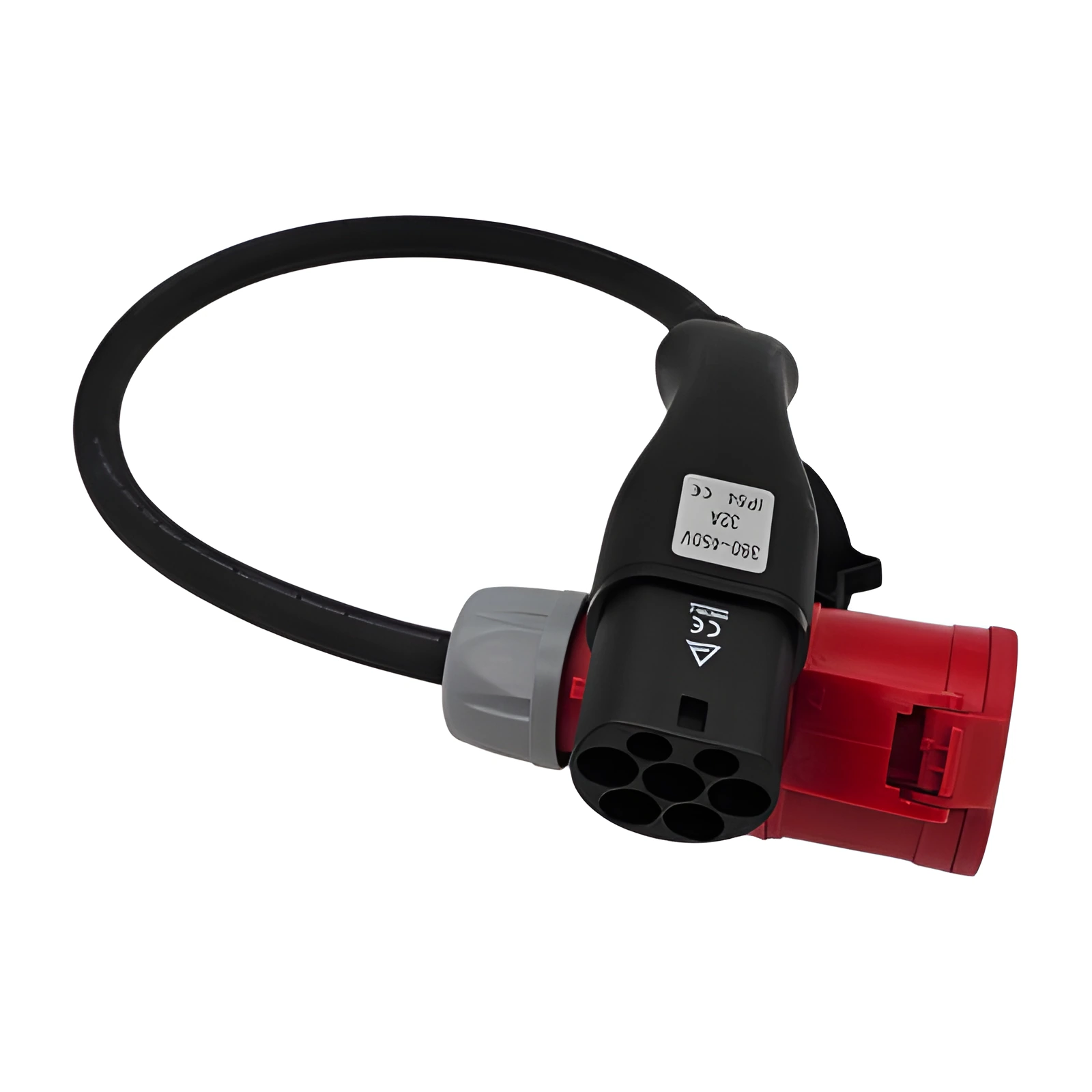

Supply suitable three-phase appliances or distribution equipment from a compatible AC Type 2 charge point. This adapter has a Type 2 input and a red 32 A five-pin CEE output socket. It is an auxiliary power adapter, not a vehicle-charging lead.
Specification
- Input: Type 2 AC charge point
- Output: red 32 A five-pin CEE socket, three-phase with neutral and earth
- Supply voltage: nominal 400 V three-phase
- Maximum available power: up to 22 kW where the charge point and installation support 32 A per phase
- CEE output socket option: IP44 or IP67 — select the required version
- Cable: 5G6 H07RN-F rubber cable
- Lead length: approximately 1 metre
Charge-point compatibility
The available current and phases depend on the charge point and its configuration. Do not assume every Type 2 outlet supplies three-phase power or 32 A per phase. Match the connected equipment to the available supply, and follow the charge-point operator’s conditions for auxiliary loads.
The adapter does not convert voltage. Connector signalling is not a substitute for load control or appropriate circuit protection. Keep loads within the ratings of the adapter, supply and connected equipment.
Connector protection and extension leads
Choose the CEE output socket rating when ordering: IP44 at £169.99, or IP67 at £179.99. The IP67 version is assembled with the selected CEE socket for your order. These ratings apply to the CEE socket under its specified assembly and mating conditions; they do not establish the rating of the Type 2 end or the complete adapter. Keep connections out of standing water and follow the marked environmental ratings.
For additional reach, use a matching 32 A five-pin three-phase TITANEX extension lead. The linked extension has IP44 connectors; it does not upgrade this adapter’s protection rating.
Understand the connection signals: EV charging CP and PP explained — Control Pilot, Proximity Pilot and current limits.
