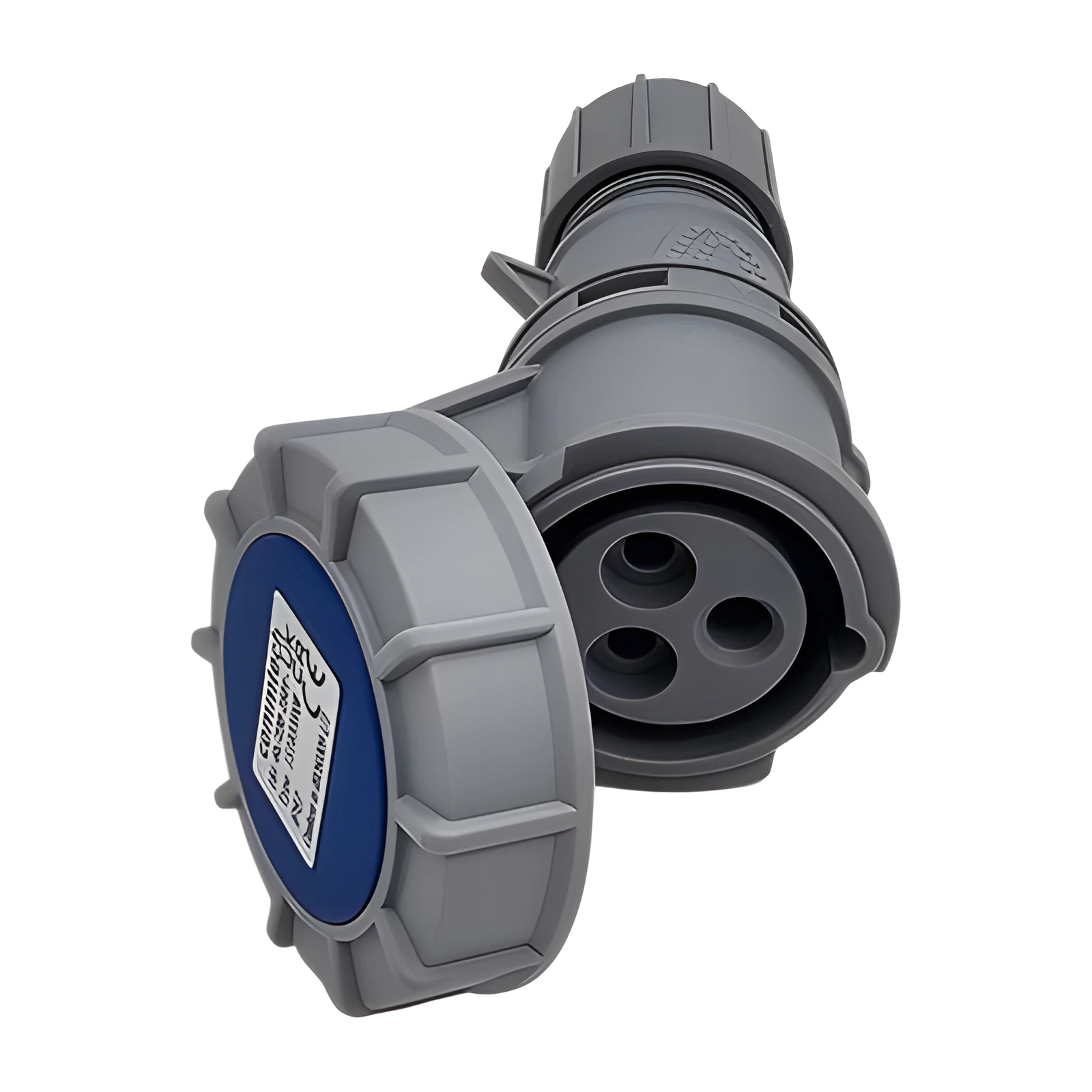

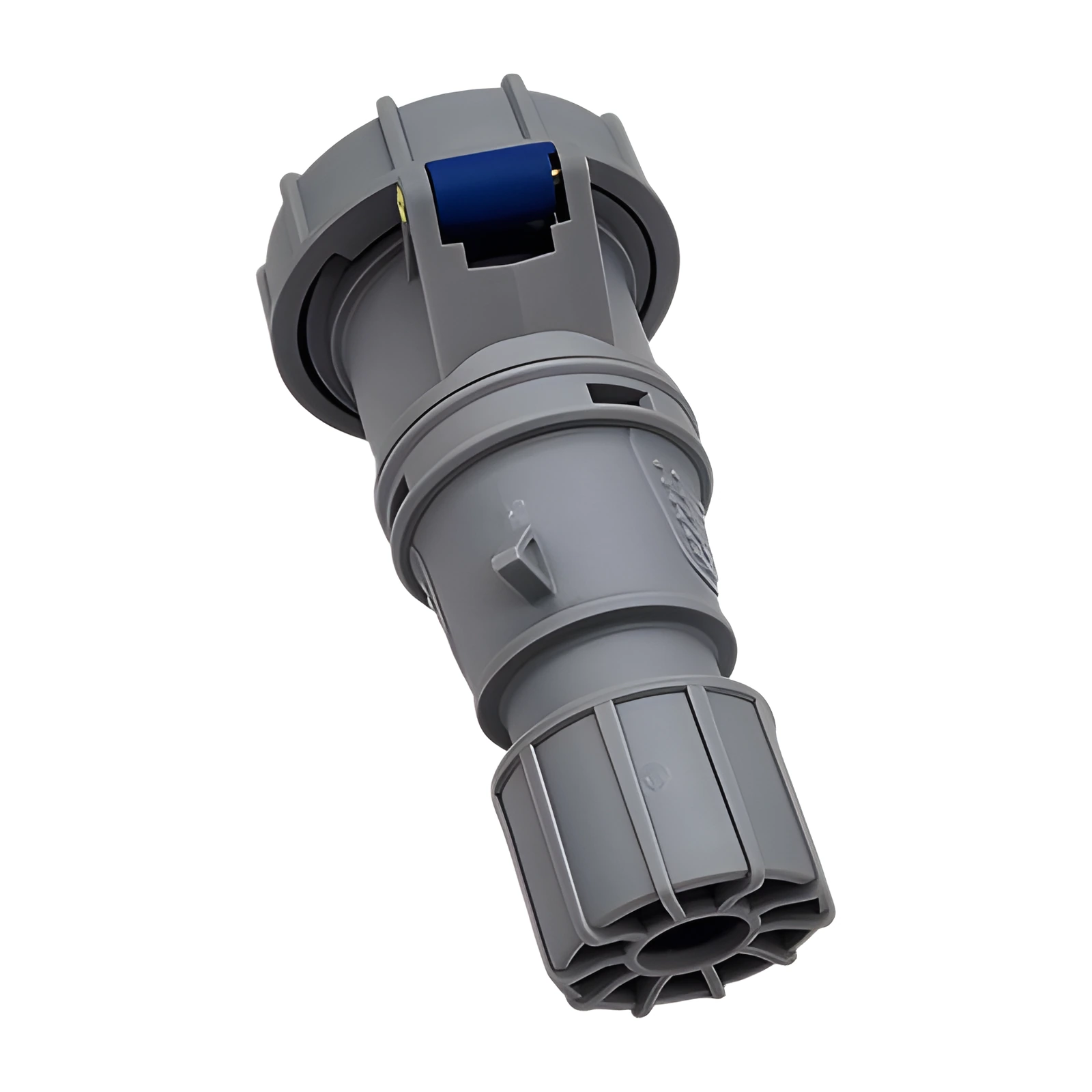

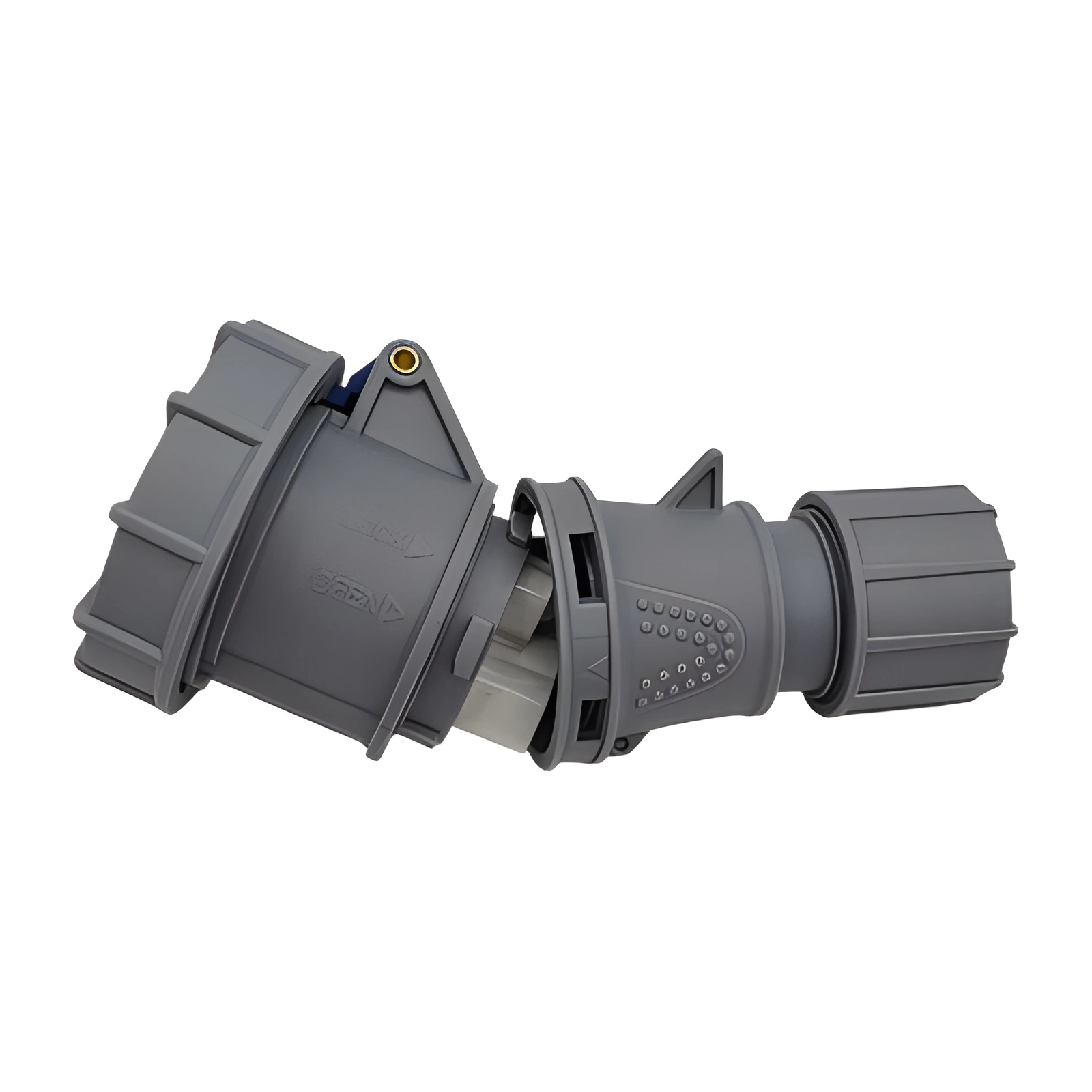

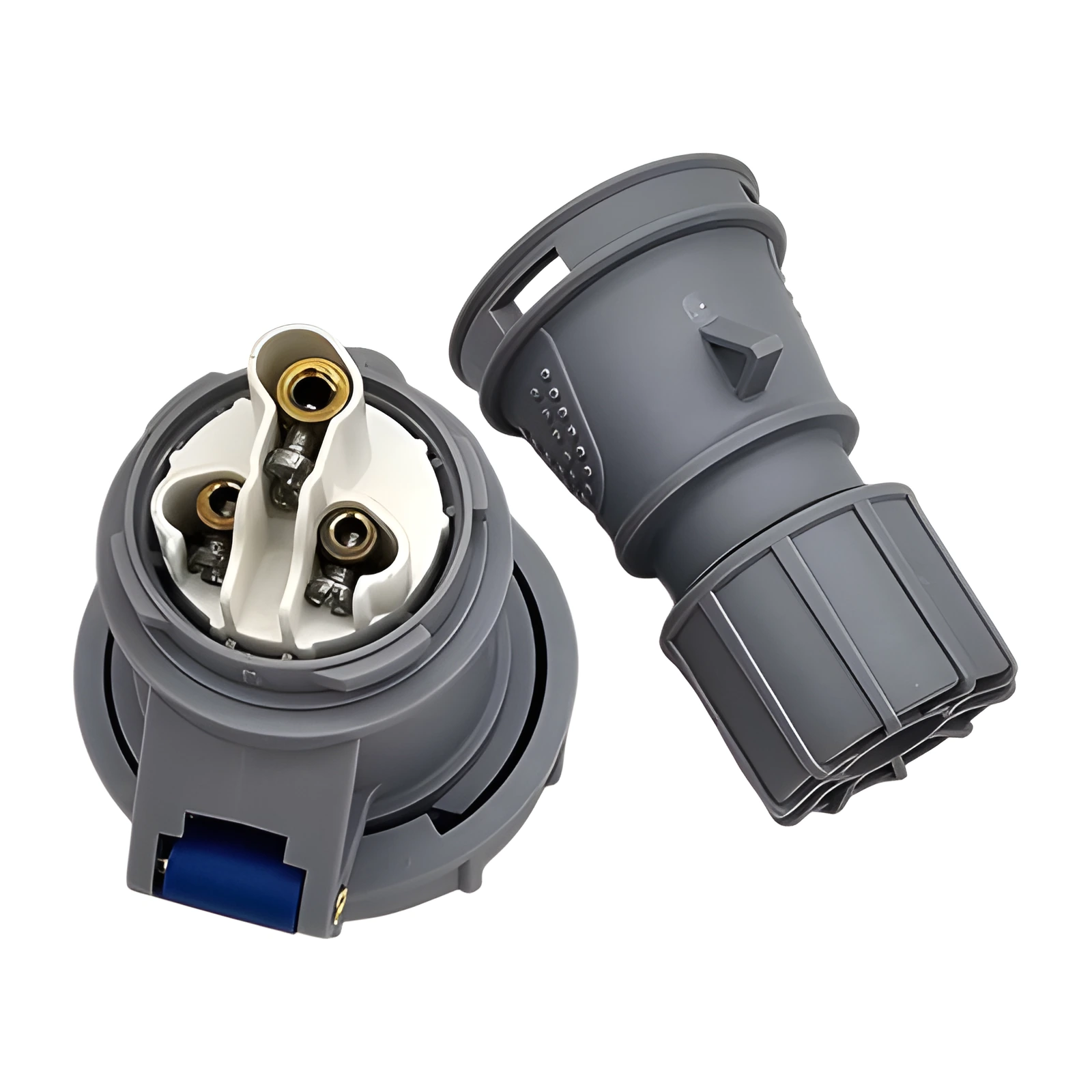

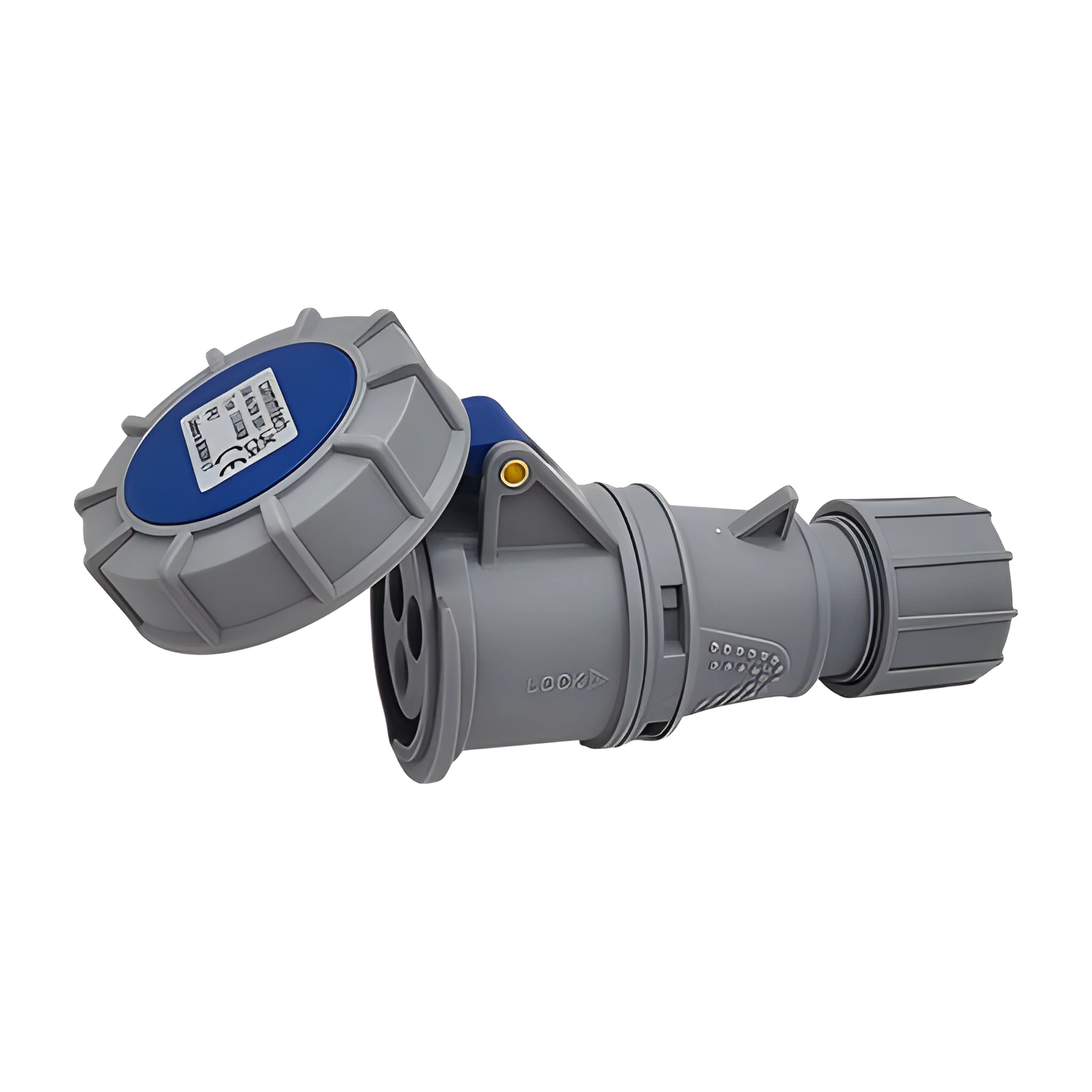

16A 230V Blue IP67 Cable-Mount CEE Socket – Heavy Duty Industrial Connector
This 16A 230V IP67 blue CEE socket is a rugged, cable-mount industrial connector designed for demanding environments where reliability and ingress protection are essential. Built to the IEC 60309-1/2 standard, it delivers a secure 2P+E connection for machinery, generators, tools, distribution boards and outdoor temporary power systems.
The connector features a robust housing, corrosion-resistant contacts and an IP67 seal to protect against dust, rain and washdown conditions. A cable gland is included for safe strain relief, making it ideal for creating custom 16A extension leads or replacing damaged industrial sockets.
Key Features
- Rated: 16A, 230V (blue CEE, 2P+E)
- IP67 ingress protection – fully dust-tight & protected against immersion
- Cable-mount design with integrated gland
- Industrial-grade housing & locking ring
- Conforms to IEC 60309-1/2
- Perfect for outdoor, marine, event and workshop applications
Technical Specifications
- Current Rating: 16A
- Voltage Rating: 230V AC
- Pin Configuration: 2P+E
- Connector Type: Socket (Female)
- Mounting: Cable-mount
- Colour: Blue
- IP Rating: IP67
FAQs
Can this 16A 230V IP67 CEE socket be used outdoors in all weather conditions?
The connector is IP67-rated under the manufacturer’s specified assembly and mating conditions. This covers dust protection and temporary immersion under defined test conditions; it is not approval for permanent immersion or every weather condition.
What cable size is suitable for wiring this 16A IP67 industrial CEE socket?
It typically accepts 1.5mm² or 2.5mm² cable depending on your load and installation method.
Is this 16A IP67 cable-mount CEE socket compatible with standard blue plugs?
Yes, it fits all IEC 60309 16A 230V blue CEE plugs used in the UK and Europe.
HDIUK Ltd – UK specialist manufacturer of 16A and 32A industrial connectors, adaptors and power distribution cables.
