Price range: £69.99 through £119.99
The 32 Amp 230 Volt IP67 CEE Extension Lead is designed for outdoor and industrial applications requiring reliable power distribution. Available in lengths from 5 to 30 metres, this durable extension lead features an IP67 rating for water and dust resistance, ensuring safe operation in challenging environments. Ideal for construction sites, outdoor events, and temporary installations. Full Details

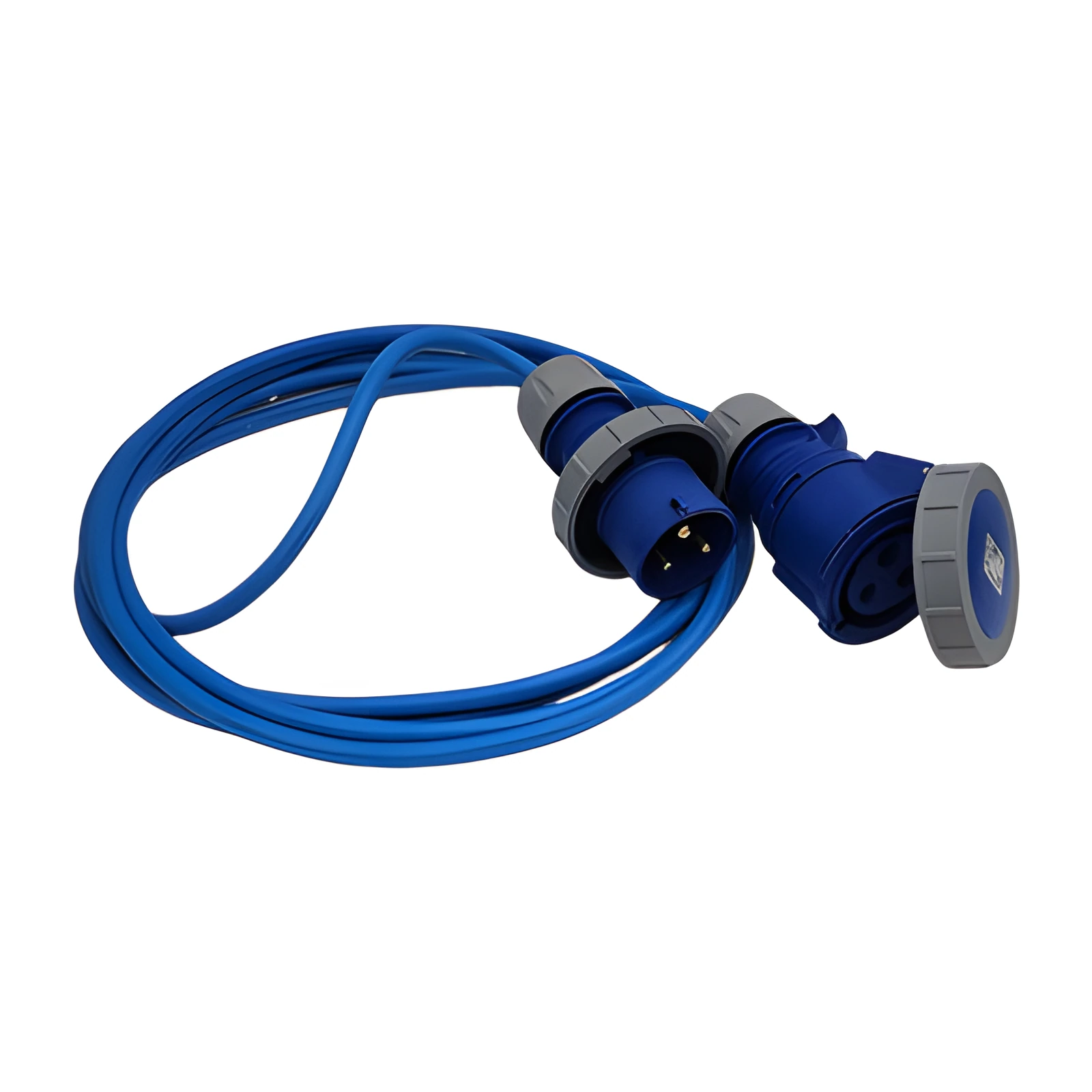

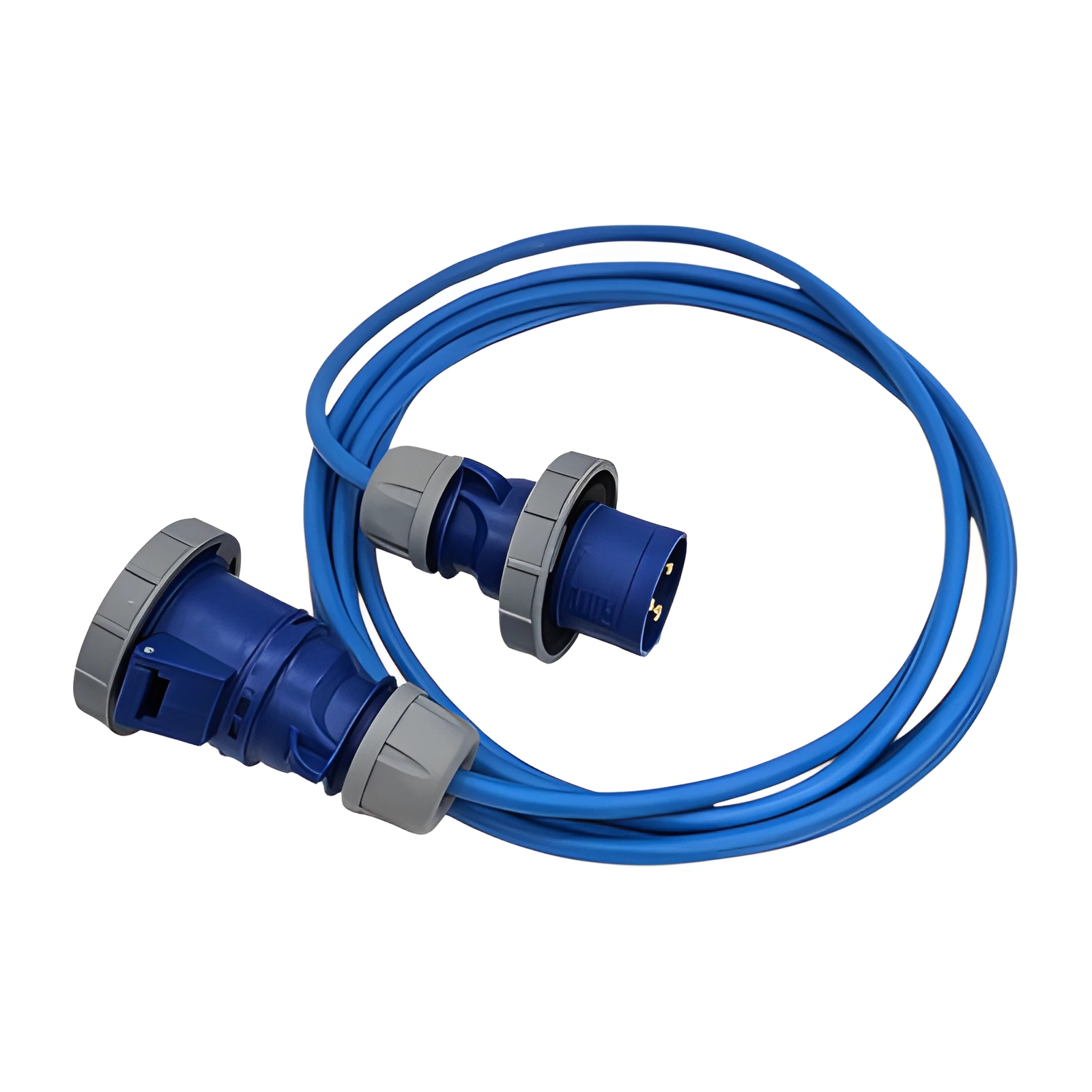

This heavy-duty HDIUK® 32A IP67 extension lead is engineered for demanding 230V single-phase applications requiring maximum reliability. Built using Arctic-grade 3G4.0mm² cable and sealed IP67 32A CEE plug and socket, it is ideal for site power, generators, industrial machinery, outdoor events and marine environments.
The flexible low-temperature Arctic cable ensures excellent handling in cold weather, while the IP67-rated couplers provide complete protection against dust, water and impact. This lead fully integrates with our modular 32A system, including the HDIUK® 32A extension lead range and the HDIUK® 32A IP67 splitter.
| Connector Type | 32A 230V CEE Plug & Socket (2P+E), IEC 60309 Blue |
| Ingress Protection | IP67 – Dust-tight and waterproof to 1 metre |
| Cable Type | 3-core Arctic Grade HO7-spec flexible cable |
| Conductor Size | 4.0mm² stranded copper |
| Voltage Rating | 230V Single Phase |
| Current Rating | 32A Continuous |
| Operating Temperature | -20°C to +70°C |
| Recommended Max Length | 30 metres (within 5% volt-drop guideline) |
| Assembly | HDIUK® UK-built |
Based on a volt-drop coefficient of 11 mV/A/m for 4mm² flexible copper cable.
| Length | Volt Drop | % Drop | Within 5%? |
|---|---|---|---|
| 5m | 1.76V | 0.77% | ✔ Yes |
| 10m | 3.52V | 1.53% | ✔ Yes |
| 15m | 5.28V | 2.30% | ✔ Yes |
| 20m | 7.04V | 3.06% | ✔ Yes |
| 25m | 8.80V | 3.83% | ✔ Yes |
| 30m | 10.56V | 4.59% | ✔ Yes (Max) |
Volt-drop: Calculated using 11 mV per amp per metre – the industry standard for 4mm² flexible copper under BS 7671 Appendix 4 methodology.
Design limit: 5% (approx. 11.5V) is the typical design guideline for portable equipment circuits.
Arctic-grade insulation: Maintains flexibility at –20°C for safe handling in cold environments.
IP67 is one of the highest levels of environmental sealing available for CEE connectors.
This makes IP67 couplers ideal for construction sites, rain, wash-down cleaning, temporary event power and marine conditions.
30 metres is the recommended maximum to stay within the 5% volt-drop guideline at full 32A load.
Yes. IP67 connectors are fully dust-tight and waterproof to 1 metre, suitable for harsh outdoor environments.
Yes. It remains flexible down to –20°C for easy handling in winter conditions.
Yes. It is ideal for 32A generator outputs and temporary site power distribution.
All technical details provided by HDIUK Ltd. Always ensure safe electrical installation practices and correct circuit protection.
