IP67 Waterproof 230V Ceeform Plugs and Sockets

Description

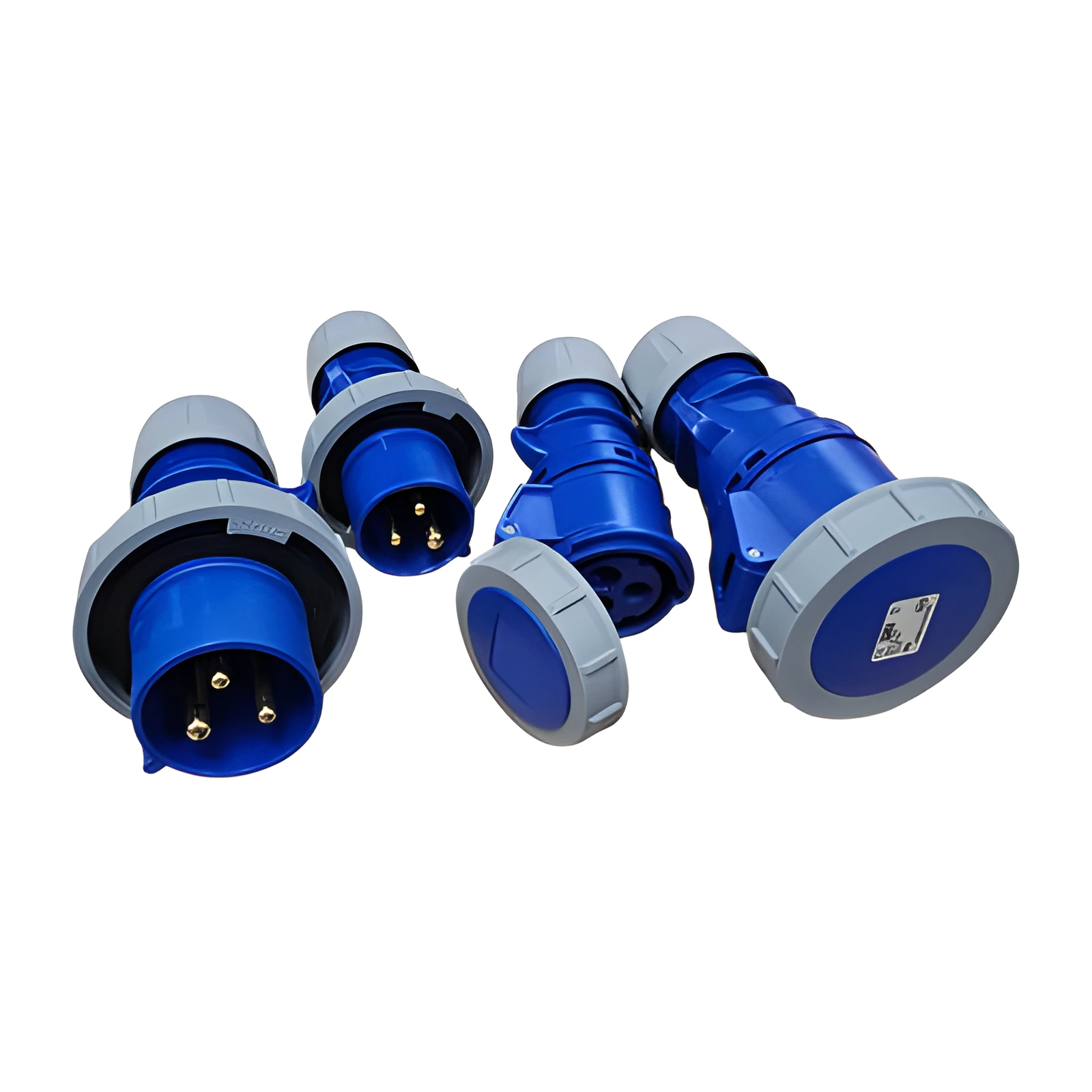

PCE blue 230 V IP67 CEE plugs and socket couplers, available in 16 A and 32 A versions. Select the required current rating and connector type.

PCE part numbers

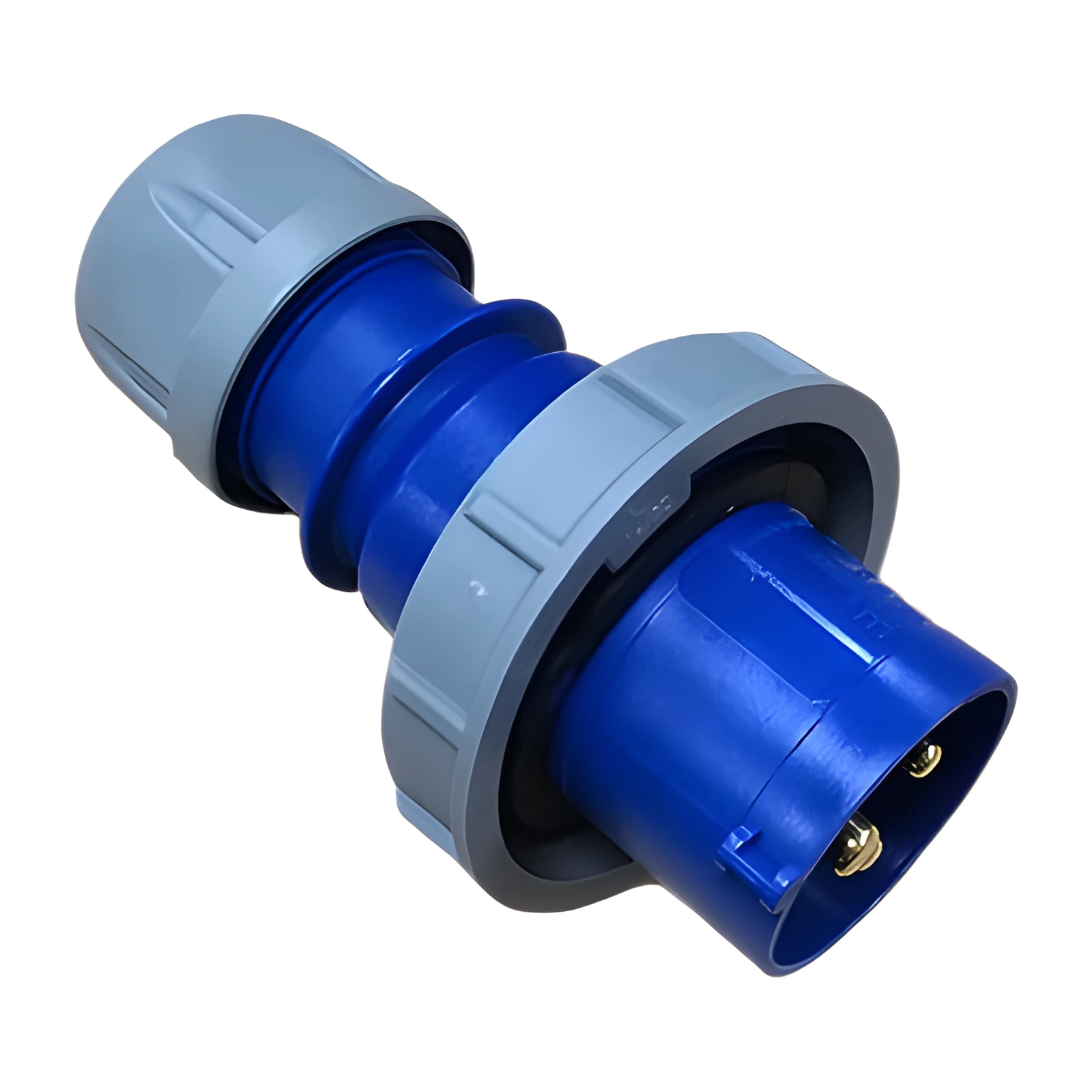

• 0132-6: 16 A plug, 2P+E

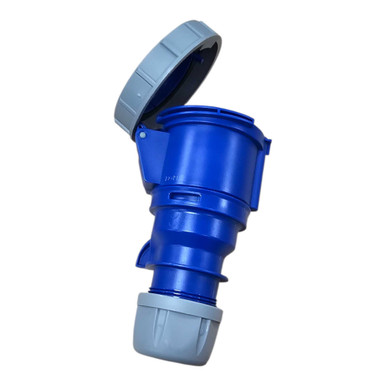

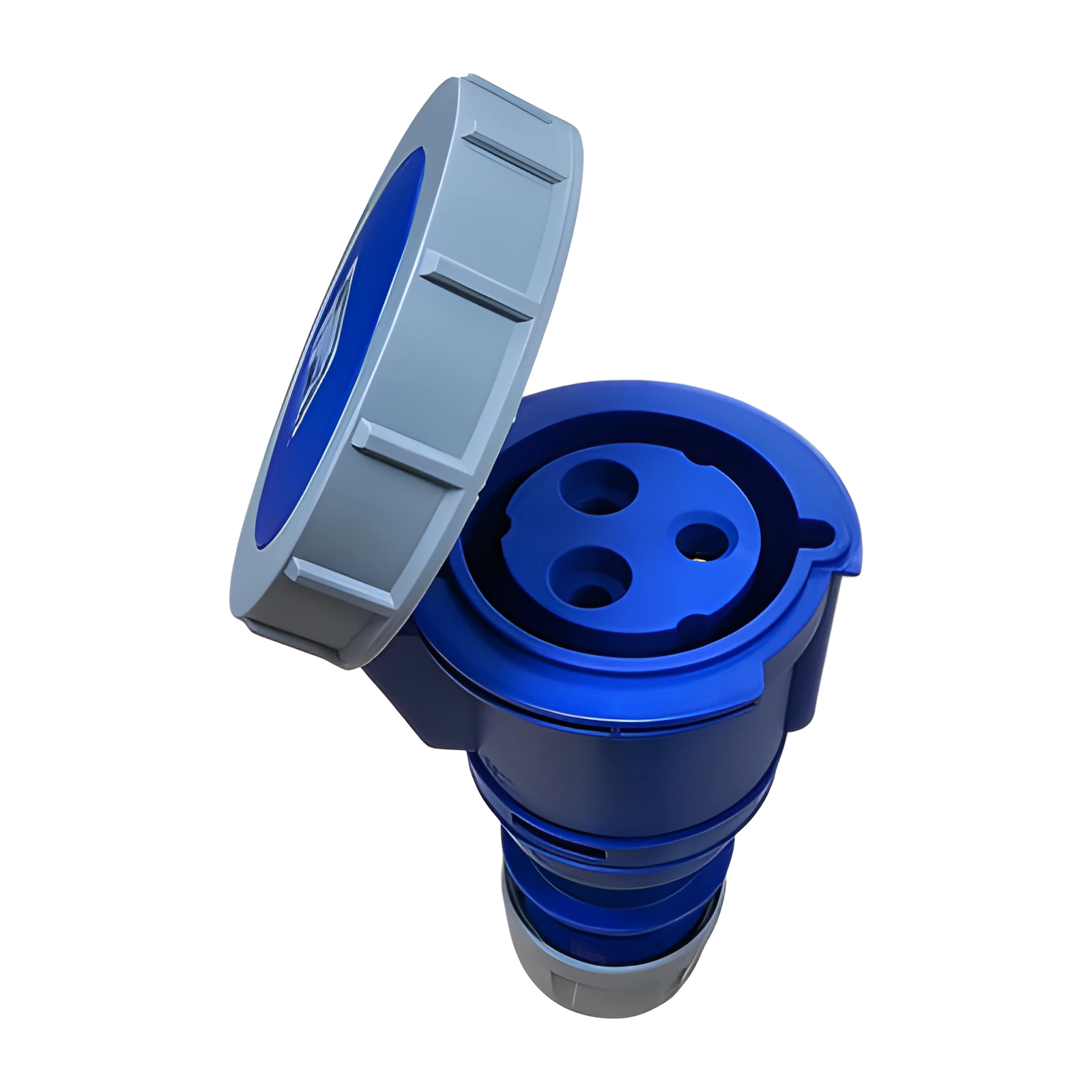

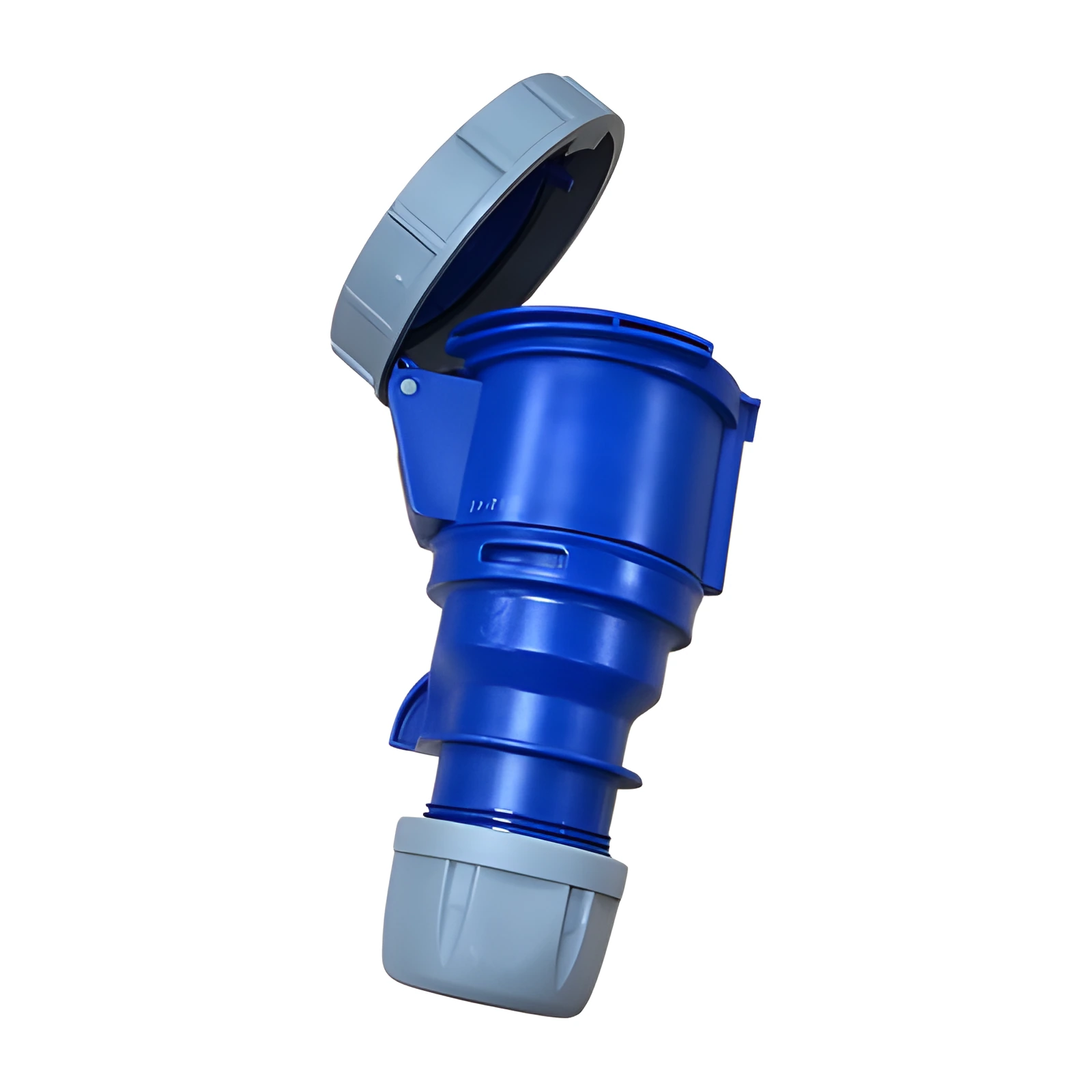

• 2132-6: 16 A socket/coupler, 2P+E

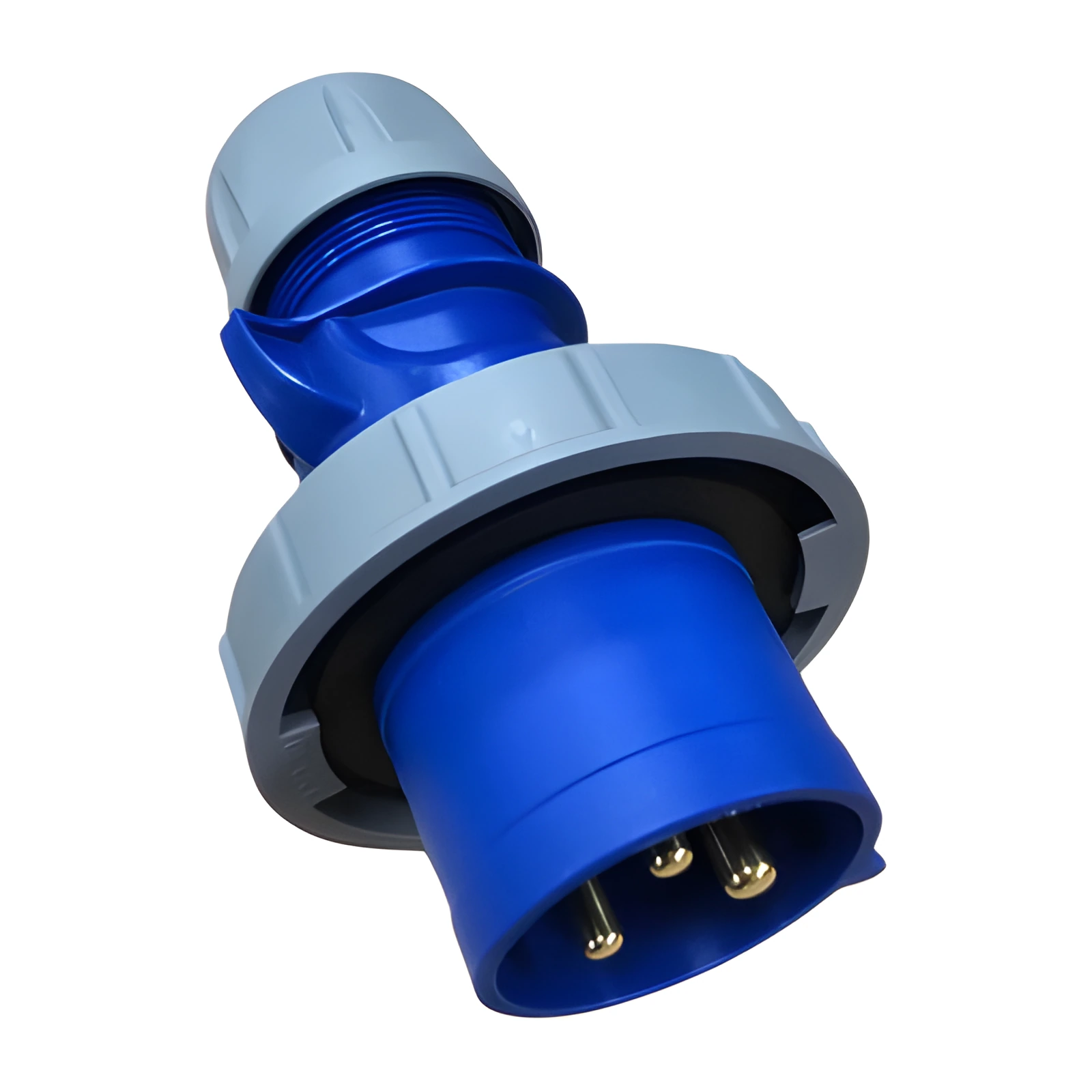

• 0232-6: 32 A plug, 2P+E
• 2232-6: 32 A socket/coupler, 2P+E

Match both ends to the same connector rating. A 16 A connector does not directly mate with a 32 A connector. The IP67 protection depends on correct assembly, cable gland sealing and the specified mating conditions. It does not permit permanent immersion.

Follow PCE instructions for conductor capacity, terminal torque and cable entry. Installation and testing must be performed by a competent person.

Frequently Asked Questions

Is a PCE IP67 32A 230V CEE plug and socket safe to use outside in heavy rain and spray?

Yes, IP67 is designed for harsh wet environments, but performance depends on correct assembly and a fully mated connection. Keep seals clean, tighten the gland correctly, and avoid leaving connectors half-engaged.

What is the difference between PCE 0132-6 and PCE 0232-6?

PCE 0132-6 is the 16 A blue three-pole IP67 plug; PCE 0232-6 is the 32 A version. Select the current rating that matches the intended mating connector.

What is the difference between PCE 2132-6 and PCE 2232-6?

PCE 2132-6 is the 16 A blue three-pole IP67 socket/coupler; PCE 2232-6 is the 32 A version. The 16 A and 32 A sizes are not directly interchangeable.

Does IP67 on a PCE CEE plug or socket mean it can be left permanently submerged in water?

No. IP67 covers temporary immersion under defined conditions, not permanent submersion. For ongoing submersion, different connector types and sealing approaches are required.

Do PCE IP67 32A CEE connectors help prevent corrosion and damp-related power faults outdoors?

They can significantly reduce water ingress compared with lower IP ratings, which helps reduce corrosion risk and moisture-related issues over time—especially when connections are kept clean, properly assembled and fully mated.
