Description

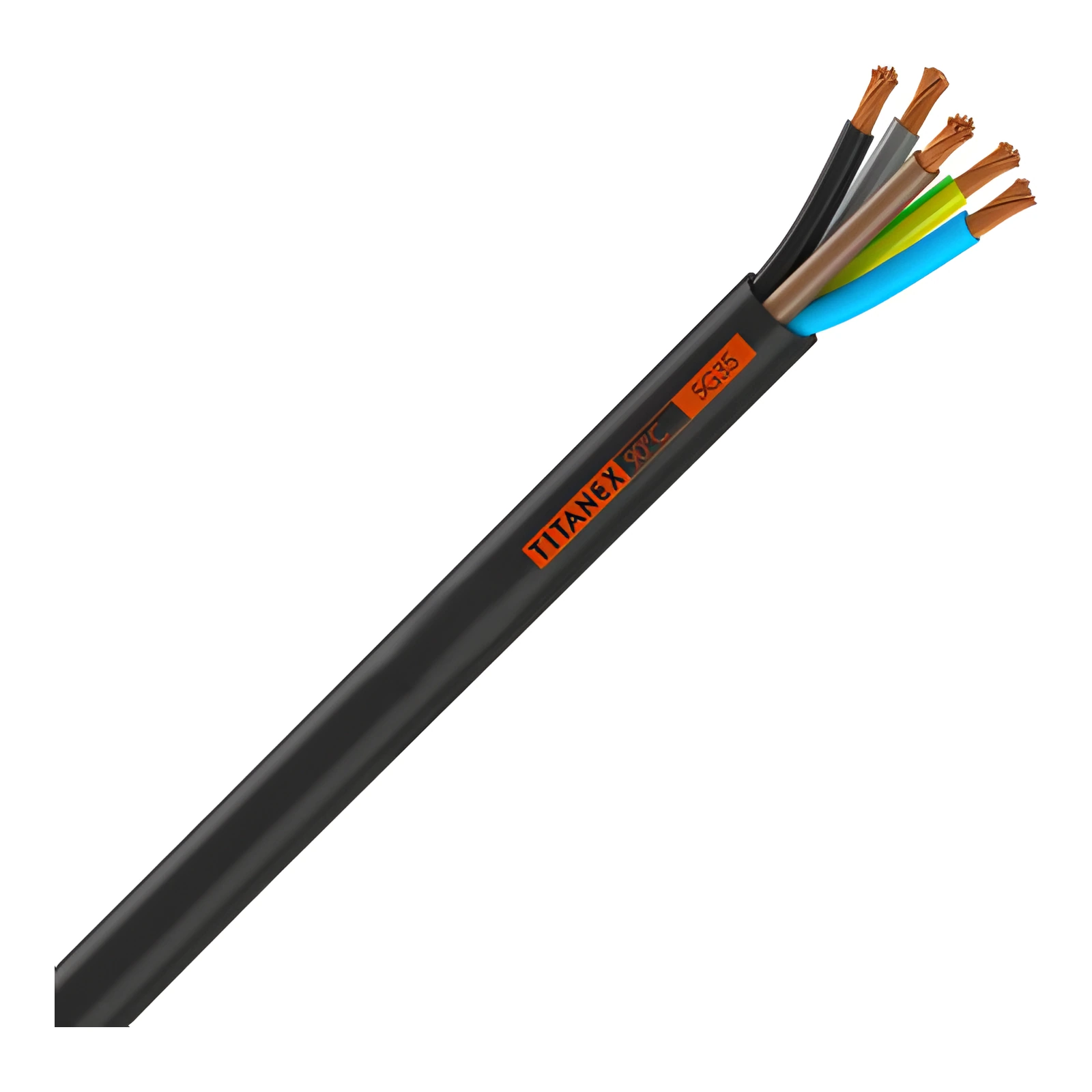

TitanEx H07RN-F Rubber Cable by Titanex – 5 Core (3 Phase) (Per Metre)

Note there is a minimum purchase Qty of 5 metres

This is priced per metre. Please enter the quantity to match the length required. e.g. Enter 100 for 100 metres
We can generally supply a single drum with your required length so if you buy 150 metres, it is possible to send a 150m Single length. Contact us first if you require clarification.

REMEMBER: If you place an order for a quantity of 1, you will receive 1 Metre of cable cut to length. Enter the quantity of metres required.

TITANEX, the Nexans H07RN-F is a flexible cable, elastomer insulated and sheathed cable with a copper core.

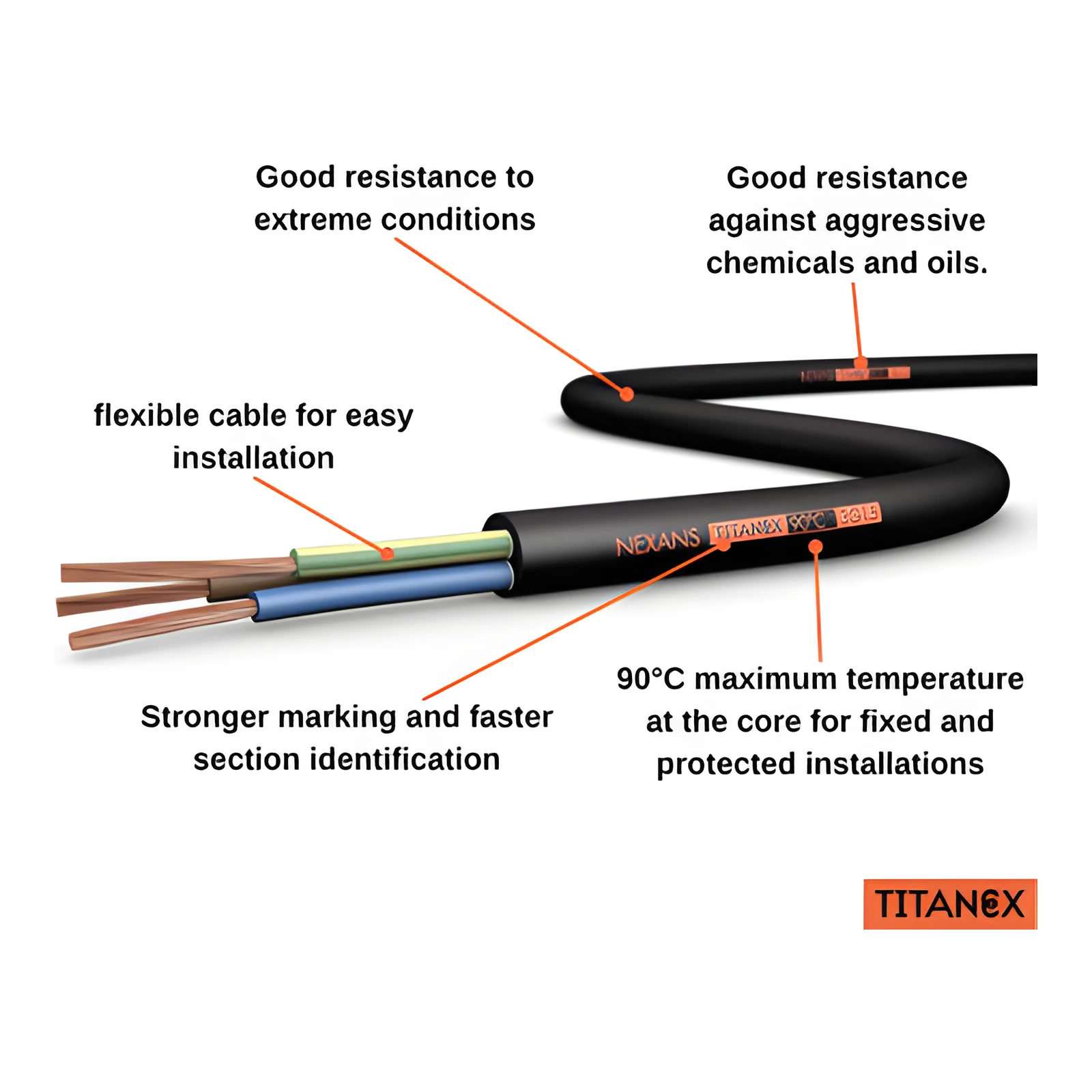

Advantages

• Very high flexibility
• Very high crush resistance
• Good resistance to chemicals, oils and vibrations

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX combines strengh and flexibility to meet all your requirements.
For more than 50 years the TITANEX® cables have been recognized and are the guarantee of reliable installations in industrial environments (factories, contruction sites, ports, …) whether they are fixed or mobile such as for cranes, machines tool connections, motor power supplies …. The mechanical qualities of TITANEX cables also make them suitable for use in event environments, such as festivals, concerts and sport events, where the cable is exposed without protection and can be used several times.

• Core temperature : 90°C
• Operating Voltage : 450/750V mobile, 0.6/1kV fixed. TITANEX H07RN-F cables have been designed to limit the generation and spread of fire and smoke.
• Reaction to fire : Eca (according to EN 50575:2014+A1:2016)
• Flame retardant (IEC 60332-1, C2)

Installation

TITANEX H07RN-F cables can be laid in cable trays, on shelves, inside ducts or fixed to walls, outside with or without protection. They can also be immersed with additionnal mechanical protection. Additionnaly, they can also be intalled outdoors without protection (UV resistance).

Minimum bending radius

• Dynamic : 6 to 8 x outer diameter of the cable.
• Static : 3 x outer diameter of the cable if OD< or = 12mm ; 4x if OD > 12mm.

Laying cable conductors

When pulling the cable, all conductors must be equally stressed. Th tensils force must never exceed 15N/mm2 of total cross-sections.
Th maximum tensile force should never exceed 1000N  in total, although the above rule may lead to higher values for large cross-sections.

Marking

TITANEX 90°C n (x or G) s NEXANS CE «har» USE H07RN-F – factory n° Made in France Y Eca n°DoP

Metric marking

Marking every metre, so that only the required length is unwound.

Specification for 1.5mm2

Good for 16 Amps at 230v

Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, Black, Grey, G/Y
Conductor : Bare Copper
Voltage : 450/750V 100/230V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.201kgs/mtr
Overall Diameter 11.2mm

Specification for 2.5mm2

Good for 16 Amps at 230v at longer lengths

Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, Black, Grey, G/Y
Conductor : Bare Copper
Voltage : 450/750V 100/230V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.305kgs/mtr
Overall Diameter 13.3mm

Specification for 4mm2

Good for 32 Amps at 230v

Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, Black, Grey, G/Y
Conductor : Bare Copper
Voltage : 450/750V 100/230V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.400kgs/mtr
Overall Diameter 16.3mm

Specification for 6mm2

Good for 16 Amps at 230v at longer lengths

Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, Black, Grey, G/Y
Conductor : Bare Copper
Voltage : 450/750V 100/230V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.557kgs/mtr
Overall Diameter 18.2mm
