Hybrid 1 x Cat 6A / 1 x 3×2.5mm Power & Data Multicore

Description

The Van Damme Tourcat Hybrid 1 x Cat 6A / 1 x 3×2.5mm Power & Data Multicore is designed for professional audio and video applications, providing a reliable solution for both data transmission and power supply in a single cable. This versatile multicore cable is ideal for touring and installation environments where high performance is essential.

What This Is For

This cable is perfect for use in live sound, broadcasting, and installation projects where both power and data need to be transmitted efficiently. It is particularly suited for connecting audio equipment, video systems, and other electronic devices in professional settings. Hybrid-cable-cat6a

From the Manufacturer

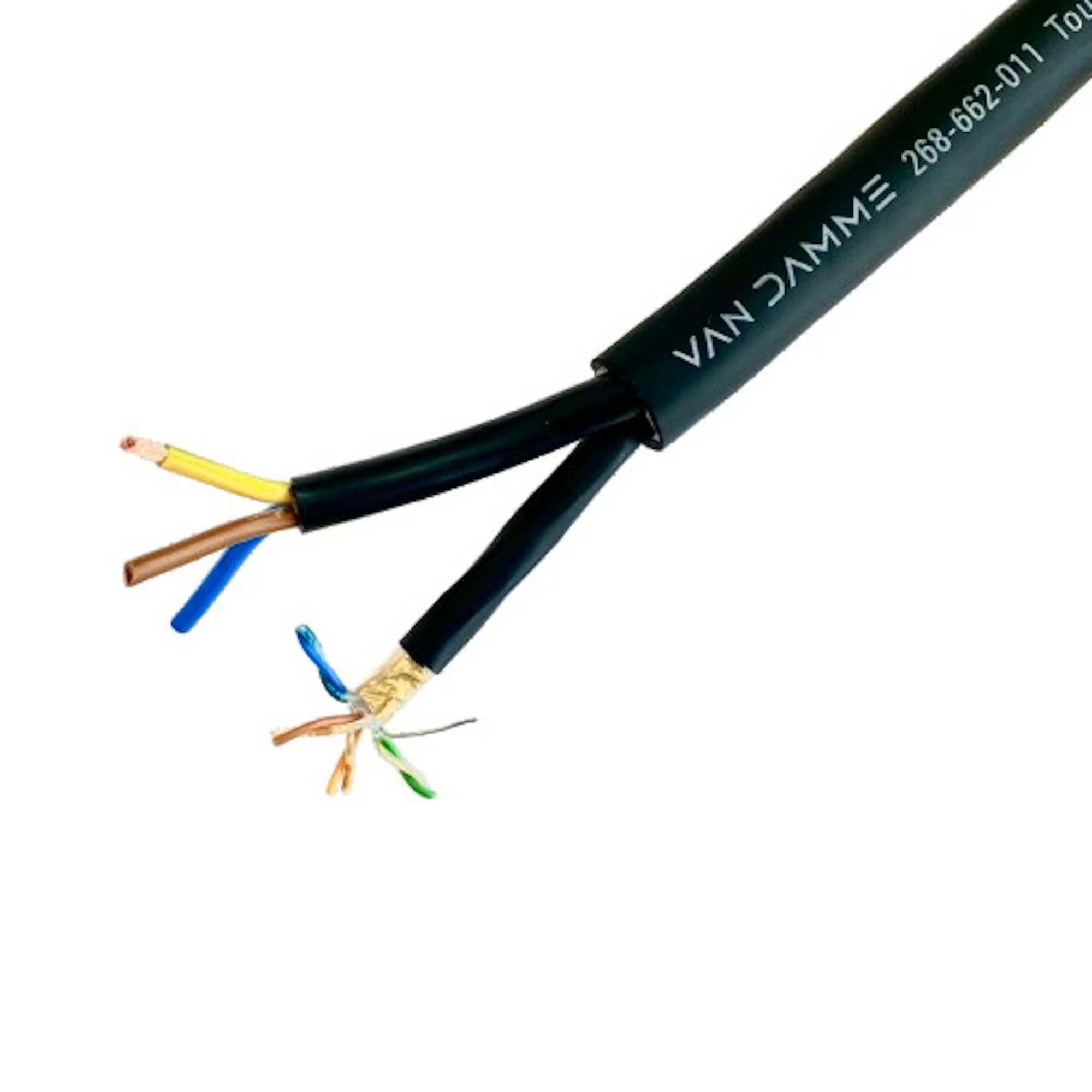

The Van Damme Tourcat Hybrid 1 x Cat 6A / 1 x 3×2.5mm Power & Data Multicore combines a Cat 6A foil-screened data element with a 2.5mm² jacketed power cable in a single flexible multicore, specified for dynamic use. Designed as an elegant, one-cable solution for integrated data and power distribution, this Tour Grade construction eliminates the need to run separate data and power runs, ideal for LED wall installations and any application where Cat 6A bandwidth is required alongside a power feed.

This product features 1 x Cat 6A foil-screened element and 1 x 3×2.5mm² HO5VV-F compliant power cable. The Cat 6A element delivers rapid, high-bandwidth data transfer via ultra-pure oxygen free copper conductors with skin-foam-skin polyethylene dielectric and aluminium/polyester foil screen at greater than 115% coverage. The power element is rated at 20A and is compliant with the HO5VV-F harmonised standard.

Key Features

• Combines data and power in one cable for streamlined installations
• High-performance Cat 6A for superior data transmission
• Robust 3×2.5mm power conductors for reliable power delivery
• Flexible design for ease of handling and installation
• Durable construction for long-lasting use in demanding environments

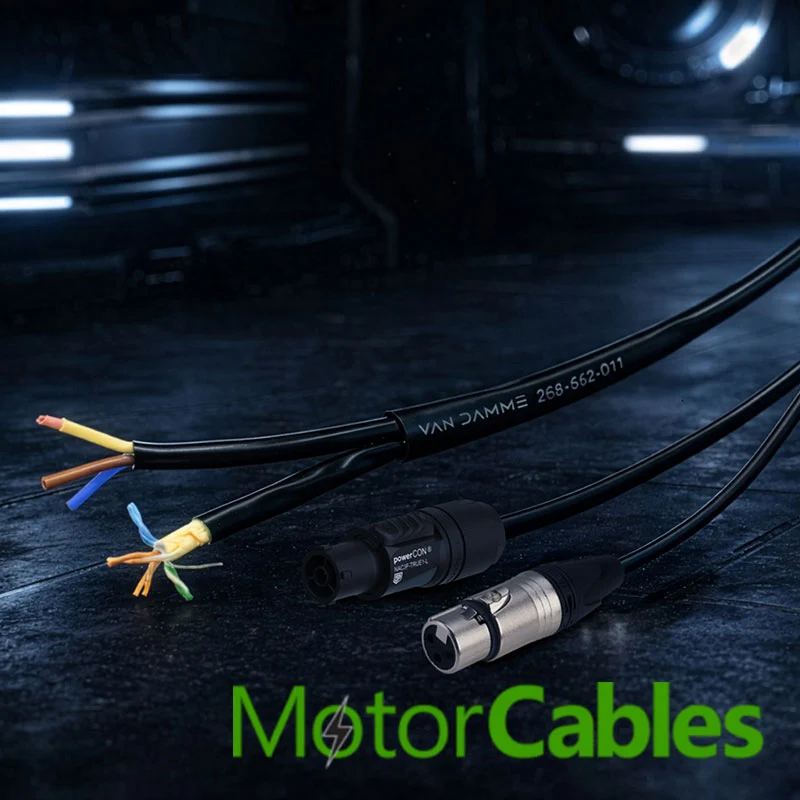

• Can be terminated with EtherCons / PowerCons or CEE connectors

Technical Specs

• Type: Hybrid multicore cable
• Data: 1 x Cat 6A
• Power: 1 x 3×2.5mm
• Length: Price per Metre
• IP Rating: Depends on Termination
• Cable Type: Hybrid
• Cat 6A Element – Conductor 1 x 0.574mm bare oxygen free copper
• Conductor size 1 x 0.574mm, 0.259mm², AWG 23
• Dielectric Skin-foam-skin polyethylene
• Dielectric diameter 1.12 ± 0.02mm
• Colour code Pair 1: White/Blue–Blue, Pair 2: White/Orange–Orange, Pair 3: White/Green–Green, Pair 4: White/Brown–Brown
• Cross member Polyethylene
• Screen Aluminium/Polyester foil >115% coverage
• Cat 6A element jacket Flexible PVC
• Cat 6A element OD 7.30 ± 0.20mm
• Power element type PVC insulated – HO5VV-F
• Power conductor size 2.5mm², 20A
• Power element OD 7.80mm
• Power element bend radius 10 x overall diameter
• Overall jacket Flexible PVC composite, Jet Black RAL 9005
• Separator Fleece tape
• Overall diameter 17.2mm ± 0.3mm
• Overall bend radius 15 x overall diameter

Compatibility & Safety Notes

Ensure compatibility with your equipment before use. This cable is designed for professional applications; handle with care to avoid damage. Always follow manufacturer guidelines for safe usage, especially when dealing with mains power.

Frequently Asked Questions

What types of equipment can I connect with the Van Damme Tourcat Hybrid cable?

You can connect various audio and video equipment, including mixers, amplifiers, and LED displays.

Is this cable suitable for outdoor use?

While the cable is durable, it is recommended to check the specific IP rating for outdoor applications.

What is the maximum distance I can run this cable without signal loss?

The maximum distance depends on the specific application; however, typical runs for Cat 6A cables are up to 100 meters.

Can I use this cable for both power and data simultaneously?

Yes, the Van Damme Tourcat Hybrid cable is designed to transmit both power and data at the same time.

Is this cable compatible with standard Ethernet devices?

Yes, the Cat 6A portion of the cable is compatible and will usually be terminated usin EtherCon connectors or Equiv.
