Price range: £1.59 through £5.29
The Nexans TitanEx H07RN-F 3-Core Heavy Duty Rubber Cable is designed for demanding environments, offering excellent flexibility and durability. Available in various sizes from 1.0mm² to 6.0mm², this cable is ideal for outdoor and industrial applications, including power supply and temporary installations. Priced per metre, it ensures you get the exact length needed for your project. Full Details
TitanEx H07RN-F 3-Core (Per Metre) (Min purchase of 5 Metres)
This is priced per metre. Please enter the quantity to match the length required. e.g. Enter 100 for 100 metres
We can generally supply a single drum with your required length so if you buy 150 metres, it is possible to send a 150m Single length. Contact us first if you require clarification.
REMEMBER: If you place an order for a quantity of 1, you will receive 1 Metre of cable cut to length. Enter the quantity of metres required.

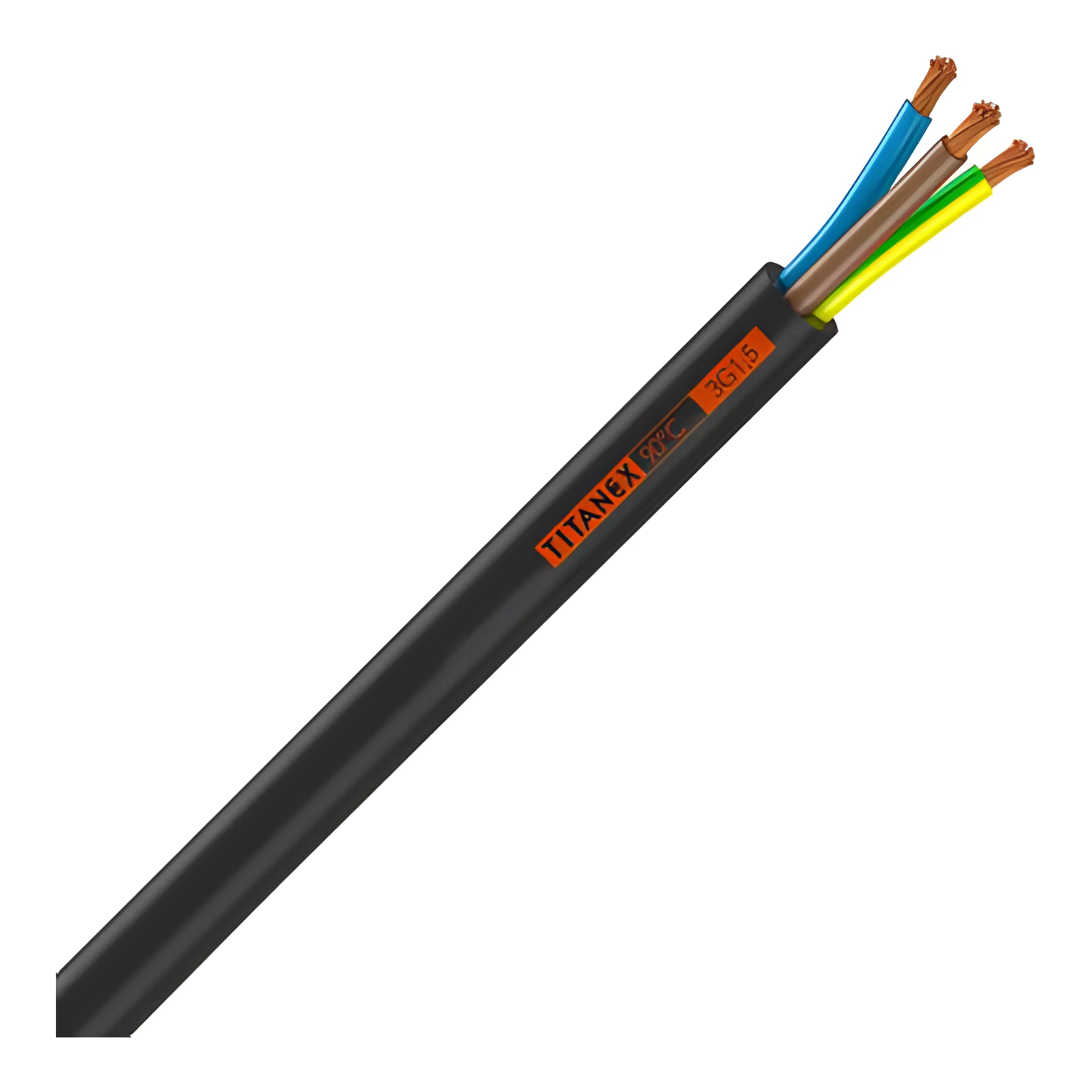

TITANEX, the Nexans H07RN-F is a flexible cable, elastomer insulated and sheathed cable with a copper core.
Advantages

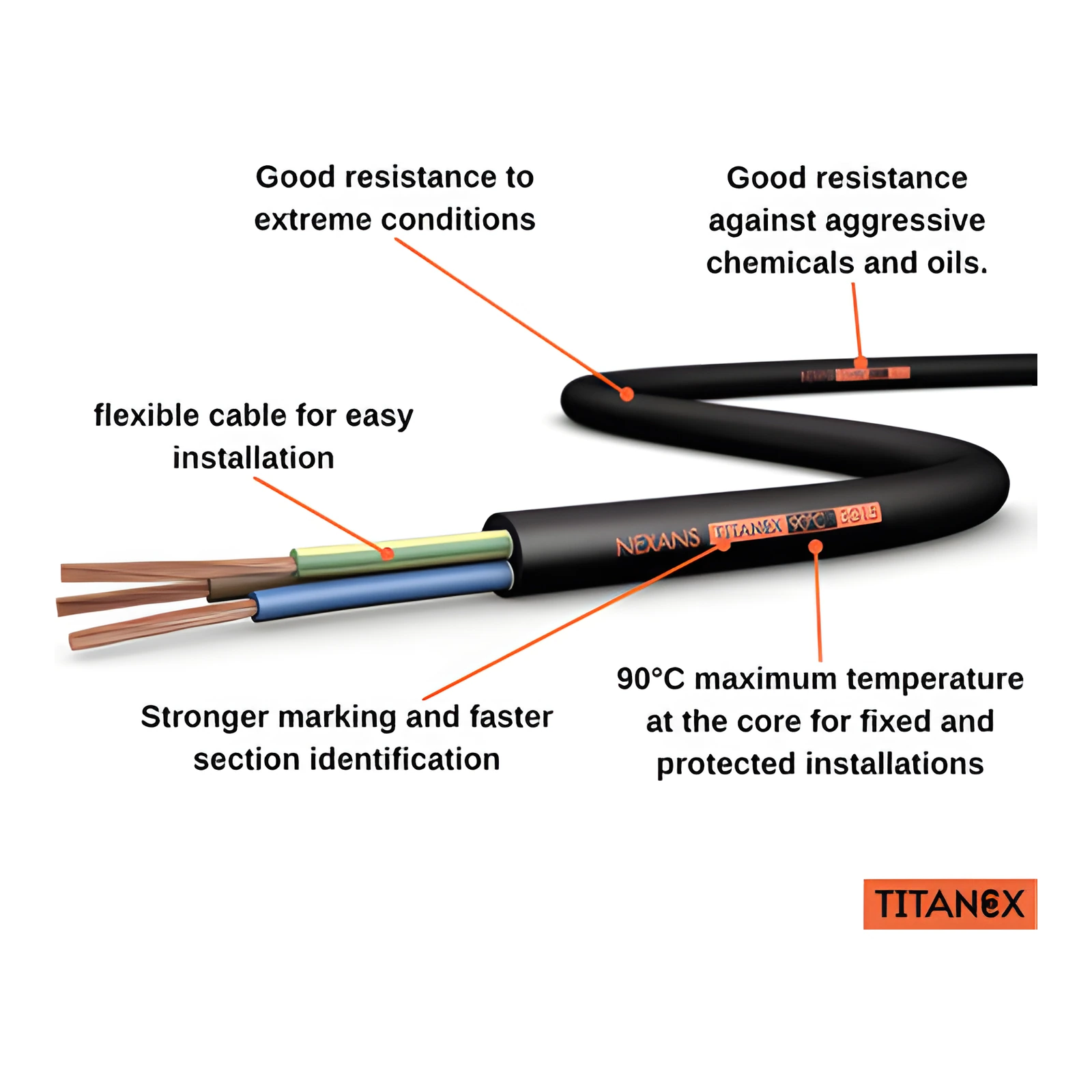

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX combines strengh and flexibility to meet all your requirements.
For more than 50 years the TITANEX® cables have been recognized and are the guarantee of reliable installations in industrial environments (factories, contruction sites, ports, …) whether they are fixed or mobile such as for cranes, machines tool connections, motor power supplies …. The mechanical qualities of TITANEX cables also make them suitable for use in event environments, such as festivals, concerts and sport events, where the cable is exposed without protection and can be used several times.
Installation
TITANEX H07RN-F cables can be laid in cable trays, on shelves, inside ducts or fixed to walls, outside with or without protection. They can also be immersed with additionnal mechanical protection. Additionnaly, they can also be intalled outdoors without protection (UV resistance).
Minimum bending radius
Laying cable conductors
When pulling the cable, all conductors must be equally stressed. Th tensils force must never exceed 15N/mm2 of total cross-sections.
Th maximum tensile force should never exceed 1000N in total, although the above rule may lead to higher values for large cross-sections.
Marking
TITANEX 90°C n (x or G) s NEXANS CE «har» USE H07RN-F – factory n° Made in France Y Eca n°DoP
Metric marking
Marking every metre, so that only the required length is unwound.
Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, G/Y
Conductor : Bare Copper
Voltage : 230/750V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.123kgs/mtr
Overall Diameter 8.8mm
Good for 16 Amps at 230 Volts
Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, G/Y
Conductor : Bare Copper
Voltage : 110/750V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.135kgs/mtr
Overall Diameter 9.4mm
Good for 16 Amps at 230 Volts at longer lengths
Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, G/Y
Conductor : Bare Copper
Voltage : 110/750V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.215kgs/mtr
Overall Diameter 11.2mm
Good for 32 Amps at 230 Volts
Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, G/Y
Conductor : Bare Copper
Voltage : 110/750V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.284kgs/mtr
Overall Diameter 12.6mm
Good for 32 Amps at 230 Volts at longer lengths
Outer Sheath : Special Cross-linked Elastomer
Sheath Colour : Black
Insulation : Special Crossed-linked Elastomer
Core Colours : Brown, Blue, G/Y
Conductor : Bare Copper
Voltage : 450/750V
Operating Temperature : -25°C to 55°C
Max. Conductor Temperature Rating : 60°C (mobile)
Max. Conductor Temperature Rating : 85°C (fixed)
Approx. Weight 0.346kgs/mtr
Overall Diameter 15.1mm
| Option | Cable Size: 1.0mm² x 3Core Rubber Cable TITANEX, Cable Size: 1.5mm² x 3Core Rubber Cable TITANEX, Cable Size: 2.5mm² x 3Core Rubber Cable TITANEX, Cable Size: 4mm² x 3Core Rubber Cable TITANEX, Cable Size: 6mm² x 3Core Rubber Cable TITANEX |
|---|
