Schuko Plug to CEE 16 A Socket Lead – 3G1.5 Blue Arctic Cable

Description

Schuko to CEE caravan and equipment hook-up lead

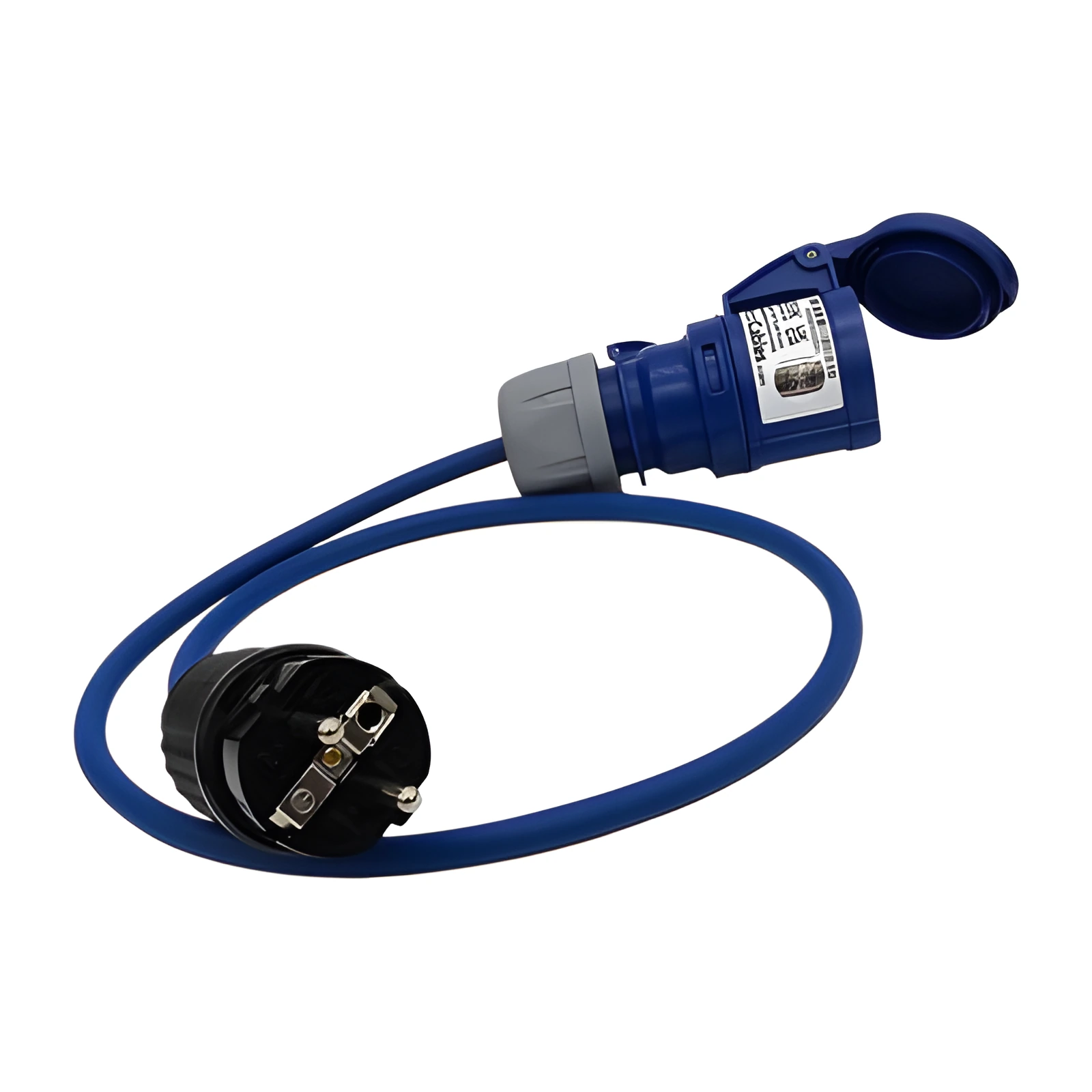

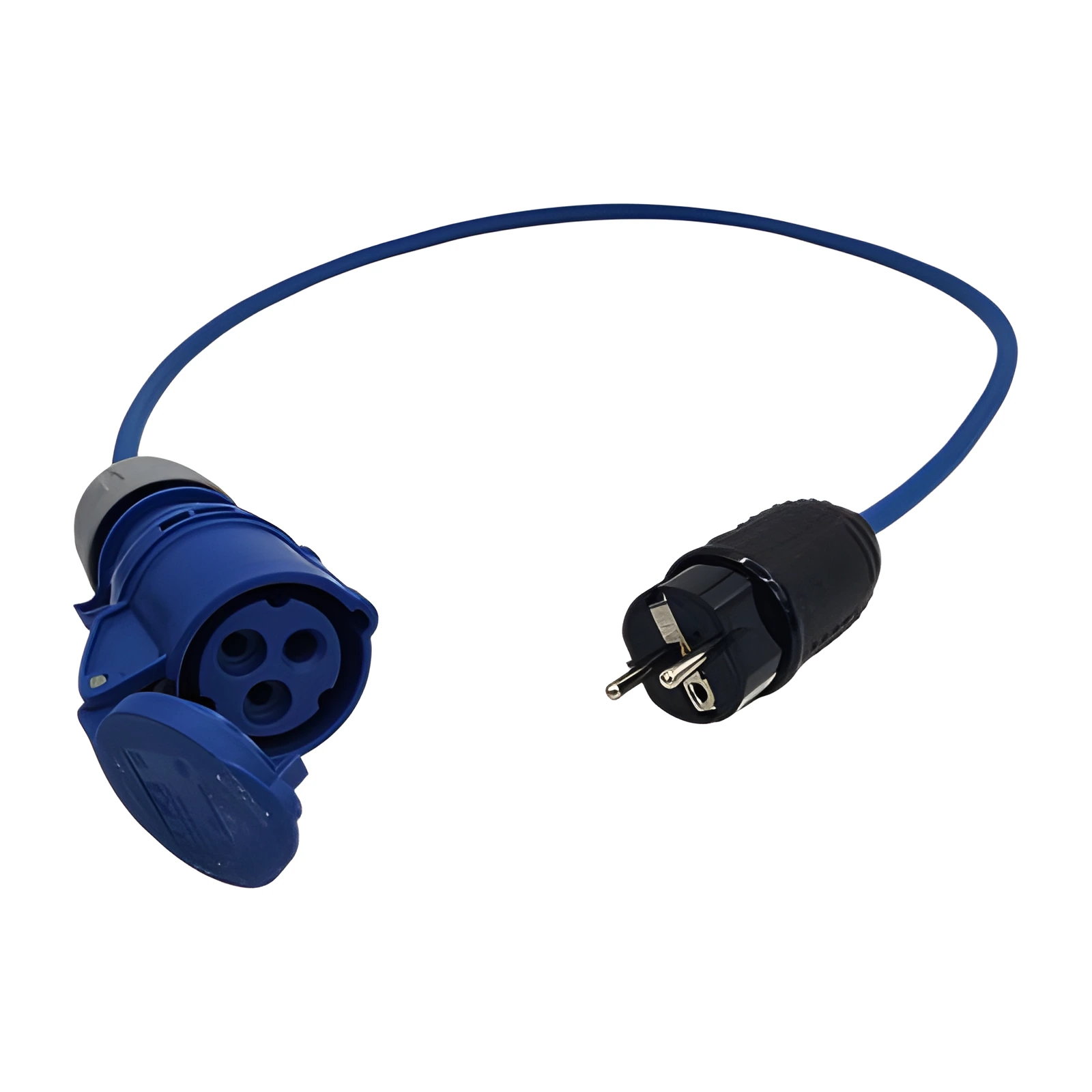

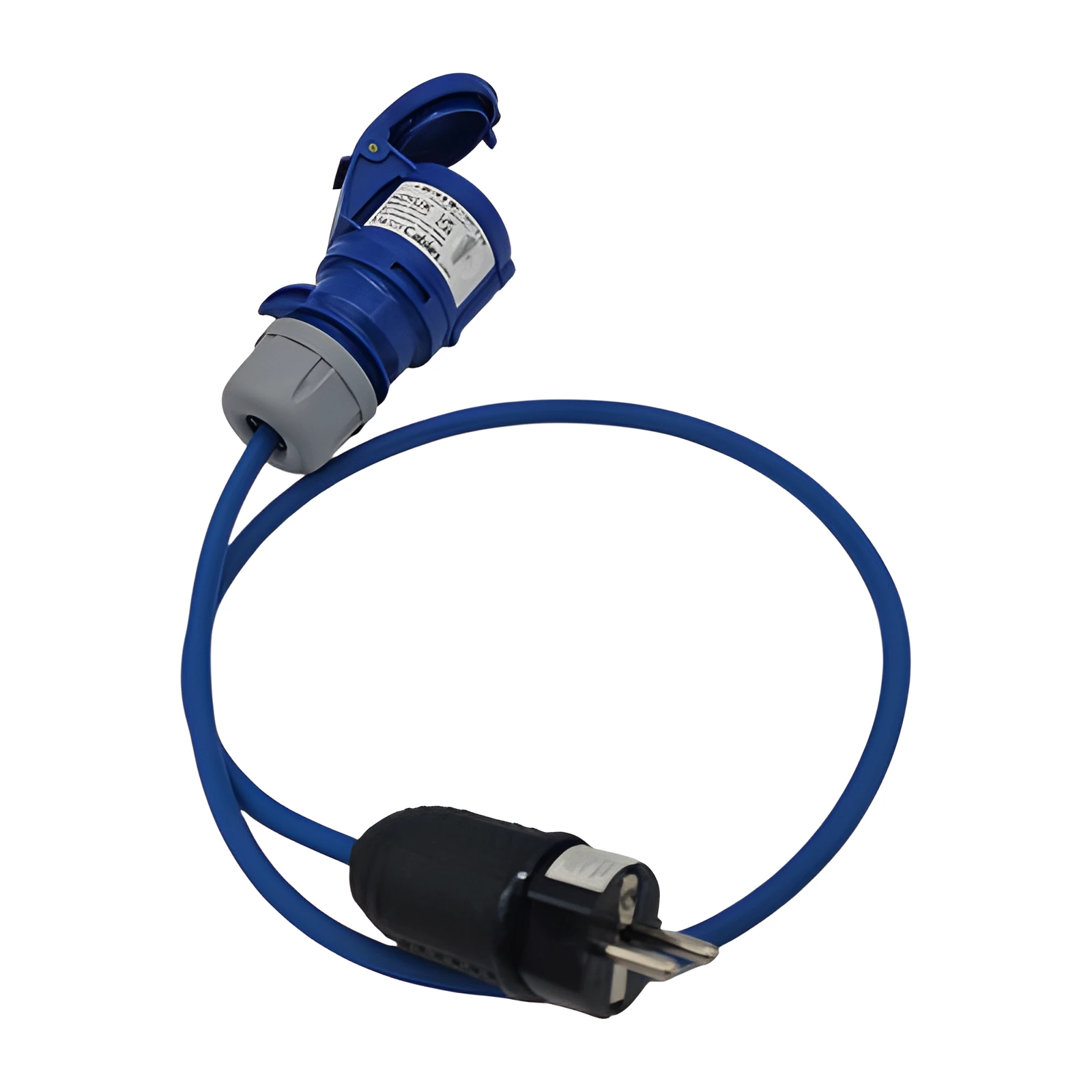

Connect equipment fitted with a blue CEE 16 A plug to a compatible European Schuko mains outlet. This lead has a hybrid Type E/F input plug and a blue CEE output socket, joined by blue Arctic cable.

Specification

• Input: hybrid Schuko Type E/F plug
• Output: blue CEE 16 A, 2P+E socket
• Supply: 230 V AC, single-phase
• Cable: 3G1.5 blue Arctic — three cores, each 1.5 mm², including protective earth
• Length options: 1, 5, 10, 15 and 20 metres
• In-line RCD: choose with or without an RCD
• Connector IP rating: IP44, subject to the specified assembly and mating conditions

Choose the appropriate version

Select the required cable length and RCD option when ordering. An RCD provides residual-current protection; the complete supply and connected equipment must also have suitable overcurrent protection.

Compatibility and use

Check the actual supply socket and equipment connector before connection. Compatibility depends on the socket type, voltage and earthing arrangement, rather than the country alone. This lead adapts the connector format and does not convert voltage.

Keep the load within the marked ratings of the complete lead, connectors and supply. Fully unwind the cable during use and account for voltage drop on longer runs. IP44 is splash protection, not an immersion rating; keep connections out of standing water.

Each lead is supplied assembled and tested by MotorCables. Continue to inspect and maintain it for the conditions in which it is used.
